DIN-Rail Mounting 2-Port CAN Server

Introduction

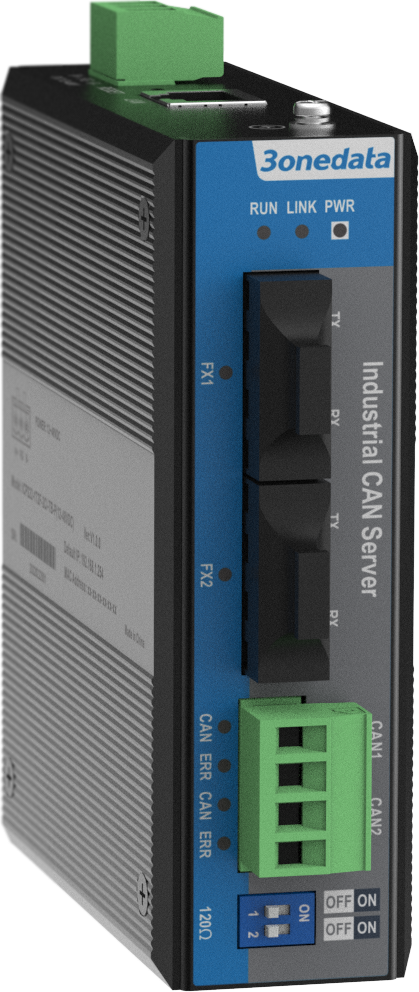

ICP222-1T2F-2CI-TB-P(12~48VDC) is a CAN server that has integrated 2 CAN ports, 2 100M fiber ports and 1 100M copper port. It can implement interconnection between CAN-Bus network and Ethernet to further extend the communication range of CAN-Bus network. This product supports 2 CAN to 2 100M Ethernet fiber ports and 1 100M copper port. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

Can server supports multiple network protocols, such as Ipv4, IPv6, TCP, UDP, LLDP, SSH, TELNET, SW-Ring, ARP, ICMP, ICMPv6, HTTP, HTTPS, BOOTP, DNS, DHCP and DHCPv6 protocols. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each can port supports TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang, UDP Multicast operating modes and TELNET, WEB, SSH access modes. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

Reset button and DIP switch can achieve restore factory defaults of the device and terminal resistance access. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.

Additional Features

 Support 1 10/100Base-T(X) copper port and 2 100Base-FX Ethernet fiber ports

 Support 5kbps~1000kbps line-speed non-blocking communication

 Support multiple operating modes like TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast

 SW-Ring could implement network redundancy and prevent network storm

 Support cross-gateway and cross-router communication

 Support time setting for heartbeat and overtime disconnection, which can disconnect idle TCP automatically

 Support CAN port status and parameter monitoring, making communication state clear to be seen

 Support automatic reconnection from network interrupts to establish reliable TCP connection

 Flexible CAN data framing setting can meet user’s various needs in data partition

 TCP enables multiple users to monitor and manage CAN device simultaneously

 Stand-alone or multi-device communication is supported in UDP mode, which enables multiple users to monitor or manage CAN device simultaneously

 Support multiple configuration forms like Windows configuration tool, TELNET, SSH and WEB

 Support manual configuration or automatic IPv4 acquisition by DHCP or BOOTP, and manual configuration or automatic acquisition of IPv6 network address by DHCPv6 or SLAAC.

 LLDP can achieve automatic topology discovery, which is convenient for visual management

 Support IP address and MAC address filtering, which can achieve accurate access control easily

 Support graded user management to implement humanized authority management

 File management is convenient for the device rapid configuration and online upgrading

 SSHD and HTTPS can guarantee the access security of data

 Network diagnosis and troubleshooting could be conducted via Ping, Traceroute and packet capture diagnosis

 ARP function is supported, which can prevent the MAC address of the device from being aged by the switch or router and unable to communicate
