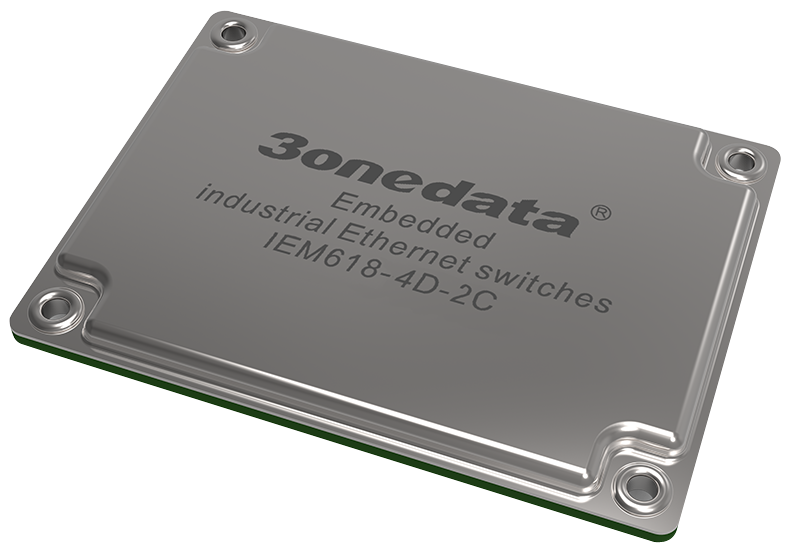

Embedded Mounting 8-port 100M Layer 2 Managed Industrial Ethernet Switch Module with 4 Serial Ports and 2 CAN Ports
Support 8 100M fiber/copper ports, 4 serial ports and 2 CAN ports
Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
Input voltage: 3.3VDC
Support -40～85℃ wide operating temperature range
Introduction
IEM618-4D-2C is 8-port 100M layer 2 managed embedded industrial Ethernet switch module with 4 serial ports and 2 CAN ports featuring high integration level, small size, rich functions, easy and convenient usage. This series have 3 types of products. It provides 4 serial ports, 2 CAN ports, and 8 100M ports which could be configured to fiber port or copper port as needed. It also adopts embedded mounting that user can custom the specification of PCB motherboard and freely choose Ethernet interface type through module pin to meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, LLDP, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. It has integrated functions of serial port server and CAN server. Each serial port and CAN port support 4 TCP or UDP session connections and multiple operating modes including TCP Server, TCP Client and UDP, etc. CLI, WEB, Telnet, SNMP and other access methods are also supported. The network management system can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
Additional Features
SNMPv1/v2c is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
File management is convenient for rapid configuration and online upgrade of the device
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device administrative security
Relay alarm is convenient for troubleshooting of construction site
VLAN can simplify the network planning
Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
IGMP-Snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
Supports multiple serial port operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
Supports multiple CAN port operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS |
| Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Client, File Management, Port Statistics |
| Security | Classification of User Permissions, Port Alarm, Power Supply Alarm, Threshold Alarm |
| Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
| Unicast / Multicast | Static Multicast, IGMP-Snooping |
| Redundancy Protocol | SW-Ring, STP/RSTP |
| Interface | 100M port: 10/100Base-T(X) or 100Base-FX, fiber/copper port
Console port: TTL level serial data Alarm port: support 2 alarm information input and output |
| Serial Port | Interface type: 4 full signal TTL level serial port (RS-232/485/422 optional)
Baud rate: 300-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Check bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit |
| CAN Port | Interface type: 2 TTL level CAN port
Baud rate: 5-1000kbps |
| LED Indicator | External indicator, running indicator, port indicator |
| Switch Property | Transmission mode: store and forward
MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 2G Switch time delay: <10μs |
| Power Requirement | 3.3VDC(±5%) |
| Power Consumption | Power consumption: ＜1.5W |
| Environmental Limit | Operating temperature: -40~85℃
Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Installation: embedded mounting (with heat-conducting fin, can be equipped with heatsink)
Dimension (W x H x D): 72mm×9.5mm×54mm |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | 100M Port
(Optional Fiber/Copper Port) |
Serial port
(Optional RS-232/485/422) |
CAN Port | Power Supply | |
| IEM618-4D-2C | 8 | 4 | 2 | 3.3VDC(±5%) | |
