24 Port Unmanaged Industrial Ethernet Switch
Support8100M copper port, 16 100M optional fiber port or copper port
Input power supply 100~240VAC/DC
Support -40~75℃ wide operating temperature range

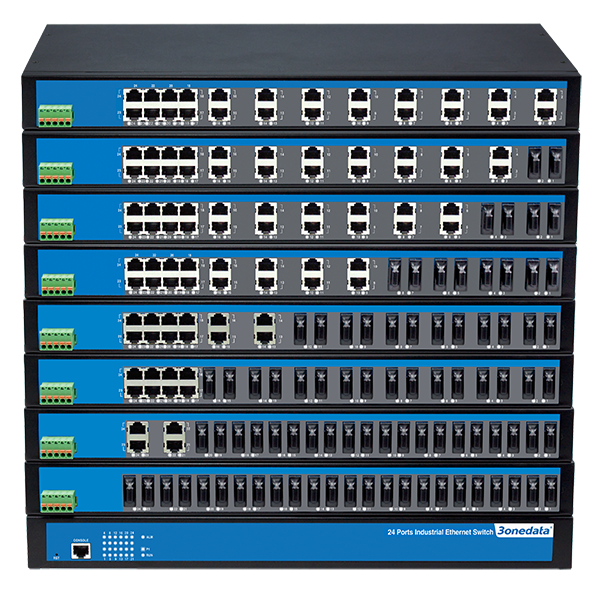

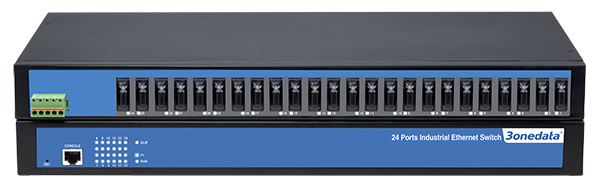

Overview of 3onedata’s 24 Port Unmanaged Industrial Ethernet Switch IES1024 Series
IES1024 series are 24-port 100M layer 2 unmanaged industrial Ethernet switches. This series include six types of products and provide full 100M copper ports, 100M copper/fiber ports. They adopt rack mounting to meet the requirements of different application scenes.
The products conform to FCC, CE standard and adopt industrial grade 4 design. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-TX
IEEE 802.3u for 100Base-TX and 100Base-FX |
|||||||||||||||||||||
| Interface | Copper port: 10/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 100Base- X SFP |
|||||||||||||||||||||
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator | |||||||||||||||||||||
| Switch Property | Transmission mode: store and forward
MAC address: 8K Packet buffer size: 3M Backplane bandwidth: 12.8G Switch time delay: < 10μs |
|||||||||||||||||||||
| Power Requirement | 100-240VAC/DC | |||||||||||||||||||||
| Power Consumption |
|
|||||||||||||||||||||
| Environmental Limit | Operating temperature range: -40~75℃
Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation） |
|||||||||||||||||||||
| Physical Characteristic | Housing: IP30 protection, metal
Installation: 19 inches rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm |
|||||||||||||||||||||
| Industrial Standard | IEC61000-4-2 (ESD)，Level 4
Air discharge: 15kV Contact discharge: 8kV
IEC61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV
IEC61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet interface: ±4kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |

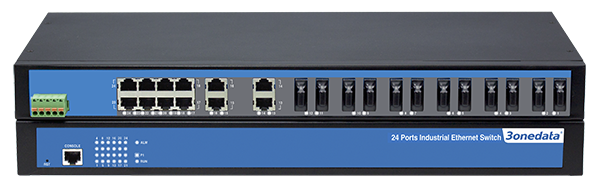

|||||||||||||||||||||
| Certification | CE, FCC, RoHS | |||||||||||||||||||||
| Warranty | 5 years |
| Available Models | 100M Fiber Port | 100M Copper Port | Power Supply Range |
| IES1024 | – | 24 | 100~240VAC/DC |
| IES1024-2F | 2 | 22 | |
| IES1024-4F | 4 | 20 | |
| IES1024-8F | 8 | 16 | |
| IES1024-12F | 12 | 12 | |
| IES1024-16F | 16 | 8 |
