10 Port Gigabit Unmanaged Industrial Ethernet Switch
Two Gigabit fiber ports(SFP), four 100M copper ports plus four 100M fiber or copper ports optional
Support dual power supply, input voltage: 12~48VDC
Support -40~75℃ wide operating temperature range

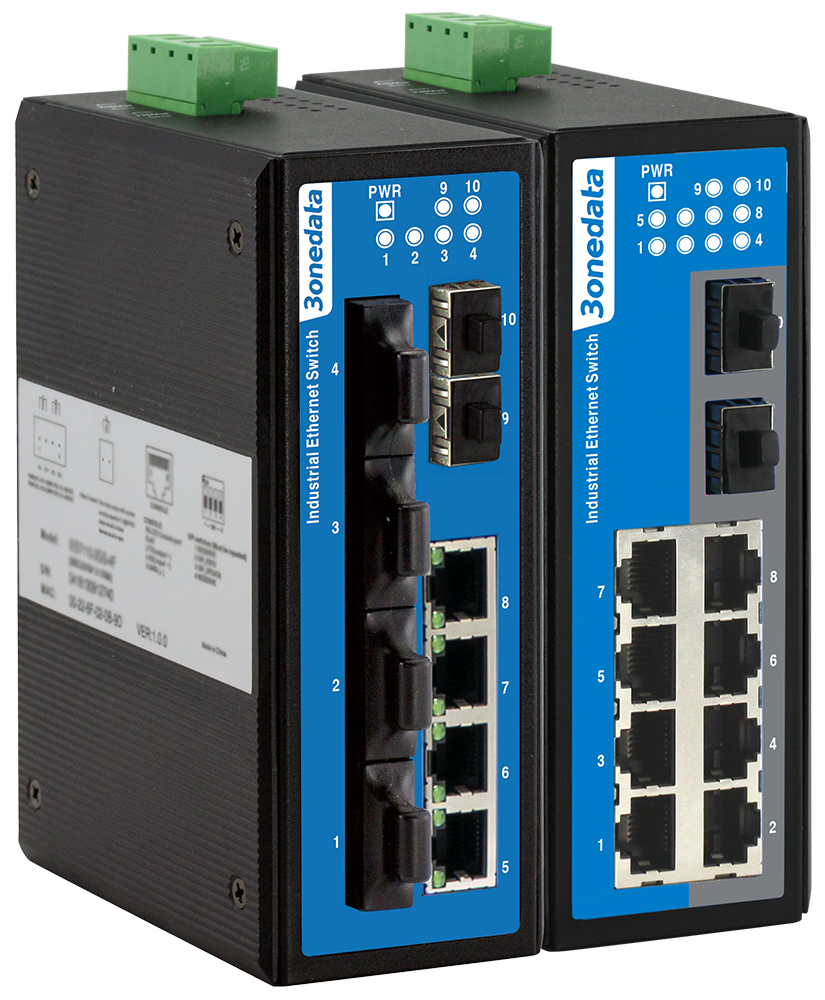

Overview of 3onedata’s 10 Port Unmanaged Switch IES2010 Series
IES2010 series are 10-port 100M/Gigabit unmanaged industrial Ethernet switches. The series include two types of products and offer multiple ports, such as 100M fiber ports and copper ports as well as Gigabit SFP slots. They also adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different application scenes.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X |
|||||||||
| Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-adaption, MDI/MDI-X Autotunning
Fiber port: 100Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP |
|||||||||
| LED Indicator | Power Supply Indicator, Port Indicator | |||||||||
| Switch Property | Transmission mode: store and forward
MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs |
|||||||||
| Power Requirement | 12~48VDC, 4-pin 7.62mm pitch terminal blocks
Dual power supply redundancy, non-polarity, reverse connection protection |
|||||||||
| Power Consumption |
|
|||||||||
| Environmental Limit | Operating temperature range: -40~75℃
Storage temperature range: -40~85℃ Relative humidity: 5%～95%(no condensation) |
|||||||||
| Physical Characteristic | Housing: IP30 protection, high-intensity corrugated metal
Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×136mm×105mm |
|||||||||
| Industrial Standard | IEC 61000-4-2 (ESD), Level 4
Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV Ethernet port:±2kV Relay: common mode±4kV, differential mode±2kV IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 180kHz-80MHz Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||||||||
| Certification | CE, FCC, RoHS | |||||||||
| Warranty | 5 years |
| Available Models | Gigabit SFP Slot | 100M Copper Port | 100M Fiber Port | Power Supply Range |

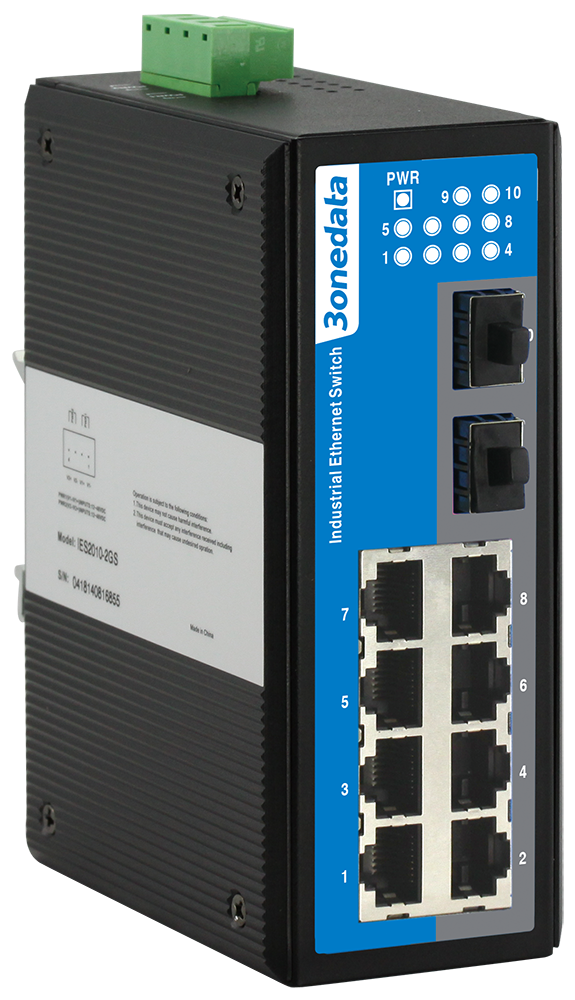

| IES2010-2GS | 2 | 8 | ― | 12~48VDC
dual power supply |

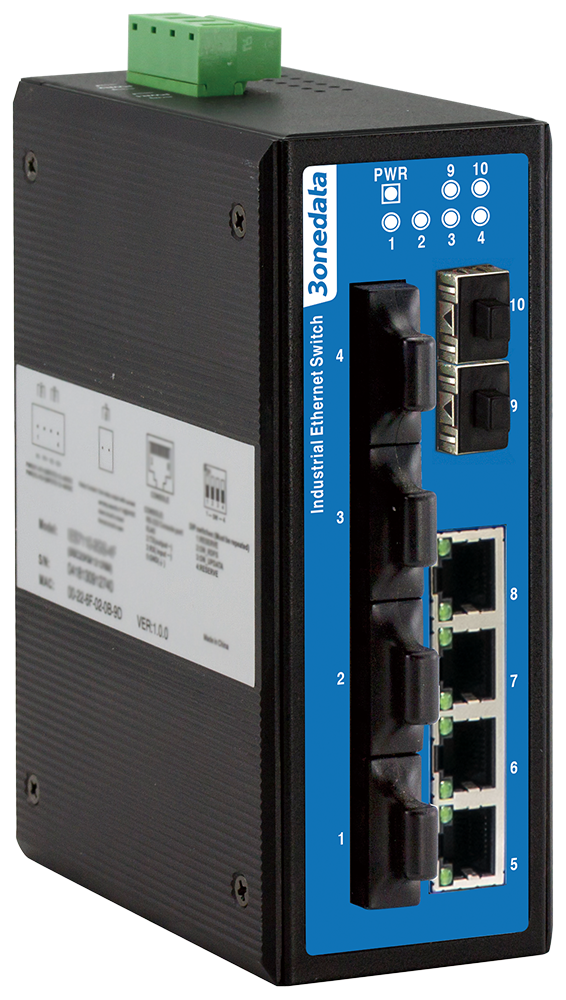

| IES2010-2GS-4F | 2 | 4 | 4 |
