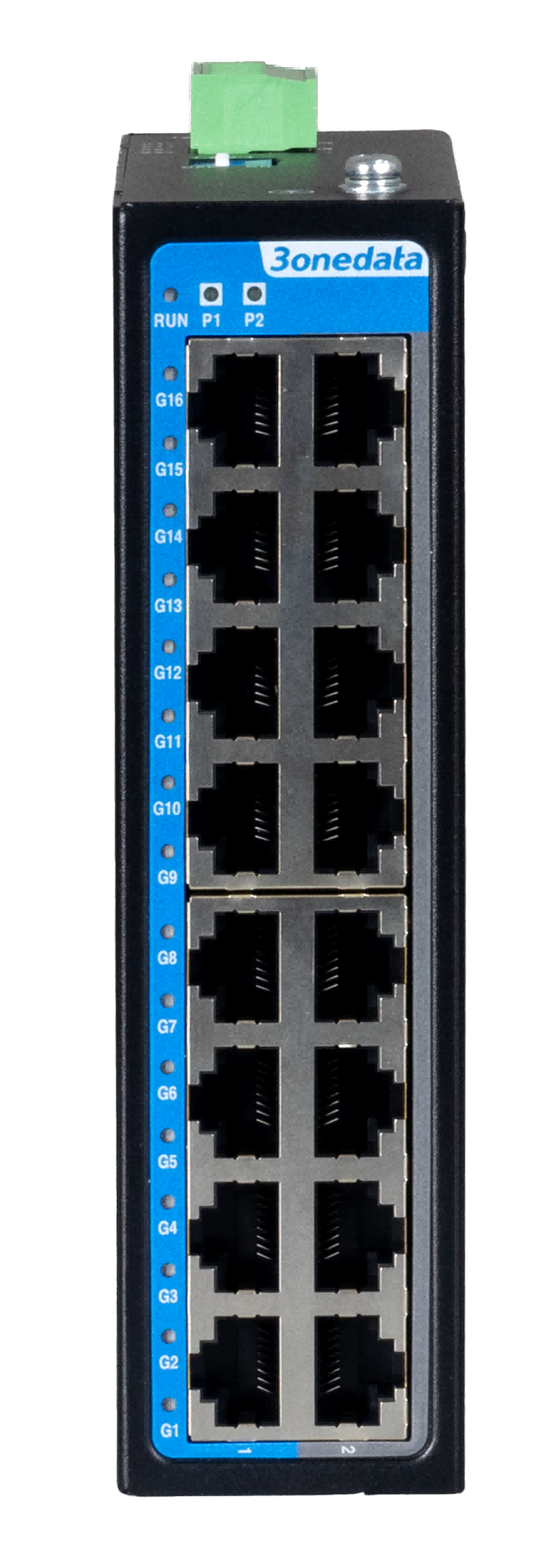

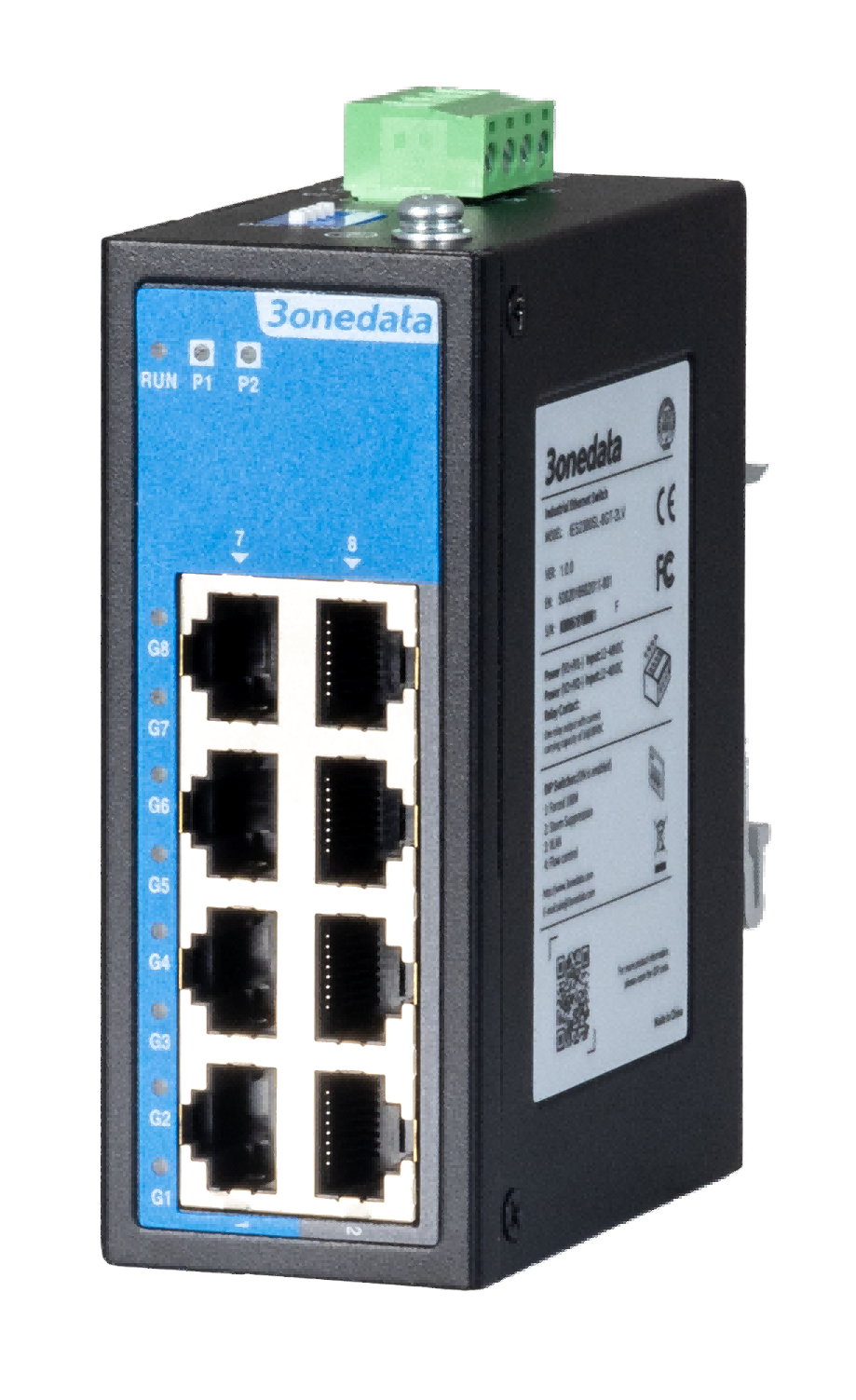

DIN-Rail or Wall Mounting 6/10/18-Port Gigabit Layer 2 Unmanaged Industrial Ethernet Switch (Optional PoE)
Support 2 Gigabit SFP slots and 4 Gigabit copper ports
Support 2 Gigabit SFP slots and 8/16 Gigabit copper ports (Optional PoE)
In PoE products, the maximum power consumption is 240W
Support dual power redundancy. The input voltage of non-PoE products: 12~60VDC, and that of PoE products: 44~57VDC
Support -40~75℃ wide operating temperature range
Introduction
IES2300SL Fiber-Port series is a 6/10/18-port Gigabit layer 2 unmanaged industrial Ethernet switch with optional PoE. PoE power supply conforms to IEEE802.3af/at protocol standard. This series supports Gigabit SFP slot, Gigabit copper port and Gigabit PoE copper port. They adopt DIN-Rail or wall mounting to meet the requirements of different application scenes.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can achieve device reboot. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, safety city, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.3af for PoE IEEE 802.3at for PoE+ |
| PoE (optional) | The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface | Gigabit Copper Port: 10/100/1000Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE
Gigabit SFP: 1000Base-X SFP slot |
| Indicator | Running Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator (PoE device) |
| Switch Property | IES2300SL-4GT2GS-2LV
Transmission mode: store and forward MAC address: 2K Backplane bandwidth: 16Gbps Switch time delay: <10μs
IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV Transmission mode: store and forward MAC address: 4K Cache: 2.5Mbit Backplane bandwidth: 20Gbps Switch time delay: <10μs
IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV Transmission mode: store and forward MAC address: 8K Cache: 4.1Mbit Backplane bandwidth: 52Gbps Switch time delay: <10μs |
| Power Supply | IES2300SL-4GT2GS-2LV, IES2300SL-8GT2GS-2LV, IES2300SL-16GT2GS-2LV
Power supply input: 12~60VDC, dual power supply redundancy Connection mode: adopt 4-pin 5.08mm pitch terminal blocks Connection protection: support anti-reverse connection
IES2300SL-8GP2GS-2LV, IES2300SL-16GP2GS-2LV Power supply input: 44~57VDC, dual power supply redundancy Connection mode: adopt 4-pin 5.08mm pitch terminal blocks Connection protection: support anti-reverse connection |
| Power Consumption | IES2300SL-4GT2GS-2LV
No-load: 0.8W@48VDC Full-load: 3.6W@48VDC
IES2300SL-8GP2GS-2LV No-load: 2.43W@48VDC Full-load (PoE): 229.4W@48VDC
IES2300SL-16GP2GS-2LV No-load: 5.32W@48VDC Full-load (without PoE): 12.96W@48VDC Full-load (with PoE): 238W@48VDC |
| Working Environment | Operating temperature: -40~75℃
Storage temperature: -40~85℃ Relative humidity: 5%~95% (no condensation) |
| Mechanical Structure | IES2300SL-4GT2GS-2LV
Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 35mm×150mm×120mm Weight: 562g
IES2300SL-8GT2GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 40.6mm×150mm×120mm
IES2300SL-8GP2GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 40.6mm×150mm×120mm Weight: 639g
IES2300SL-16GT2GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 65mm×150mm×120mm
IES2300SL-16GP2GS-2LV Housing: IP30 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 65mm×150mm×120mm Weight: 947g |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Ethernet port: ±1kV
IES2300SL-4GT2GS-2LV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode ±2kV, differential mode ±1kV Ethernet port: common mode ±2kV, differential mode ±1kV
IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV, IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV IEC 61000-4-5 (Surge), Level 4+ Power supply: common mode ±6kV, differential mode ±2kV Ethernet port: common mode ±6kV, differential mode ±2kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Model | Gigabit Copper Port | Gigabit PoE
Copper Port |
Gigabit SFP
Slot |
PoE Power | Power Supply | |
| IES2300SL-4GT2GS-2LV | 4 | — | 2 | — | 12~60VDC
dual power supply redundancy |
|
| IES2300SL-8GT2GS-2LV | 8 | — | 2 | — | ||
| IES2300SL-16GT2GS-2LV | 16 | — | 2 | — | ||
| IES2300SL-8GP2GS-2LV | — | 8 | 2 | 240W | 44~57VDC
dual power supply redundancy |
|
| IES2300SL-16GP2GS-2LV | — | 16 | 2 | 240W | ||
