Unmanaged 8 Port Ethernet Data Switch
Support 4 100M Ethernet copper ports and 4 100M Ethernet ports (optional fiber/copper ports)
Support relay alarm output
Support 9~60VDC dual power input and power supply nonpolarity
Support 220VAC/DC power supply input
Support -40~75℃ wide temperature operation
Introduction
IES318 series is an 8-port 100M layer 2 unmanaged industrial Ethernet switch. This series provides 8 products and supports 100M copper ports and 100M fiber ports. They adopt wall or DIN-Rail mounting to meet the requirements of different application scenes.
DC power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. The design of DIP switch can realize port alarm and power alarm. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-X |
|||||||||||||||||||||||||||
| Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-Adaption, MDI/ MDI-X Autotunning
Fiber port: 100Base-X, optional SC/ST/FC Alarm port: 2-pin 7.62mm pitch terminal blocks, supports 1 relay alarm output, and the current load capacity is 1A@24VDC or 0.5A@120VAC |
|||||||||||||||||||||||||||
| Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator | |||||||||||||||||||||||||||
| Switching Property | Transmission mode: store and forward
MAC address: 2K Buffer: 1Mbit Backplane bandwidth: 1.6G Switch time delay: <10μs |
|||||||||||||||||||||||||||
| Power Supply | DC power: 12/24/48VDC (9~60VDC), with dual power supplies, built-in overcurrent protection, supports nonpolarity
AC power: 220 VAC/DC (85~264VAC/DC), with built-in overcurrent protection |
|||||||||||||||||||||||||||
| Power Consumption |
|
|||||||||||||||||||||||||||
| Working Environment | Operating temperature: -40~75℃
Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
|||||||||||||||||||||||||||
| Physical Characteristic | Housing: IP40 protection, high-strength corrugated metal
Installation: DIN-Rail or wall mounting Dimension (W x H x D): 53mm×138mm×110mm Weight: 670g |
|||||||||||||||||||||||||||
| AC Product
Industrial Standard |
IEC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT),Level3 Power supply: ±2kV Ethernet port: ±1kV Relay: ±2kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode ±2kV, differential mode ±1kV Ethernet port: common mode ±2kV, differential mode ±1kV Relay: common mode ±2kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||||||||||||||||||||||||||
| DC Product
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4
Air discharge: ± 15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT),Level4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge),Level 4 Power supply: common mode±4kV, differential mode±2kV Ethernet port: common mode±4kV, differential mode±2kV Relay: common mode ±4kV, differential mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||||||||||||||||||||||||||
| Authentication | CE, FCC, RoHS | |||||||||||||||||||||||||||
| Warranty | 5 years |
| Model | 100M Copper Port | 100M Fiber Port | Power Supply |

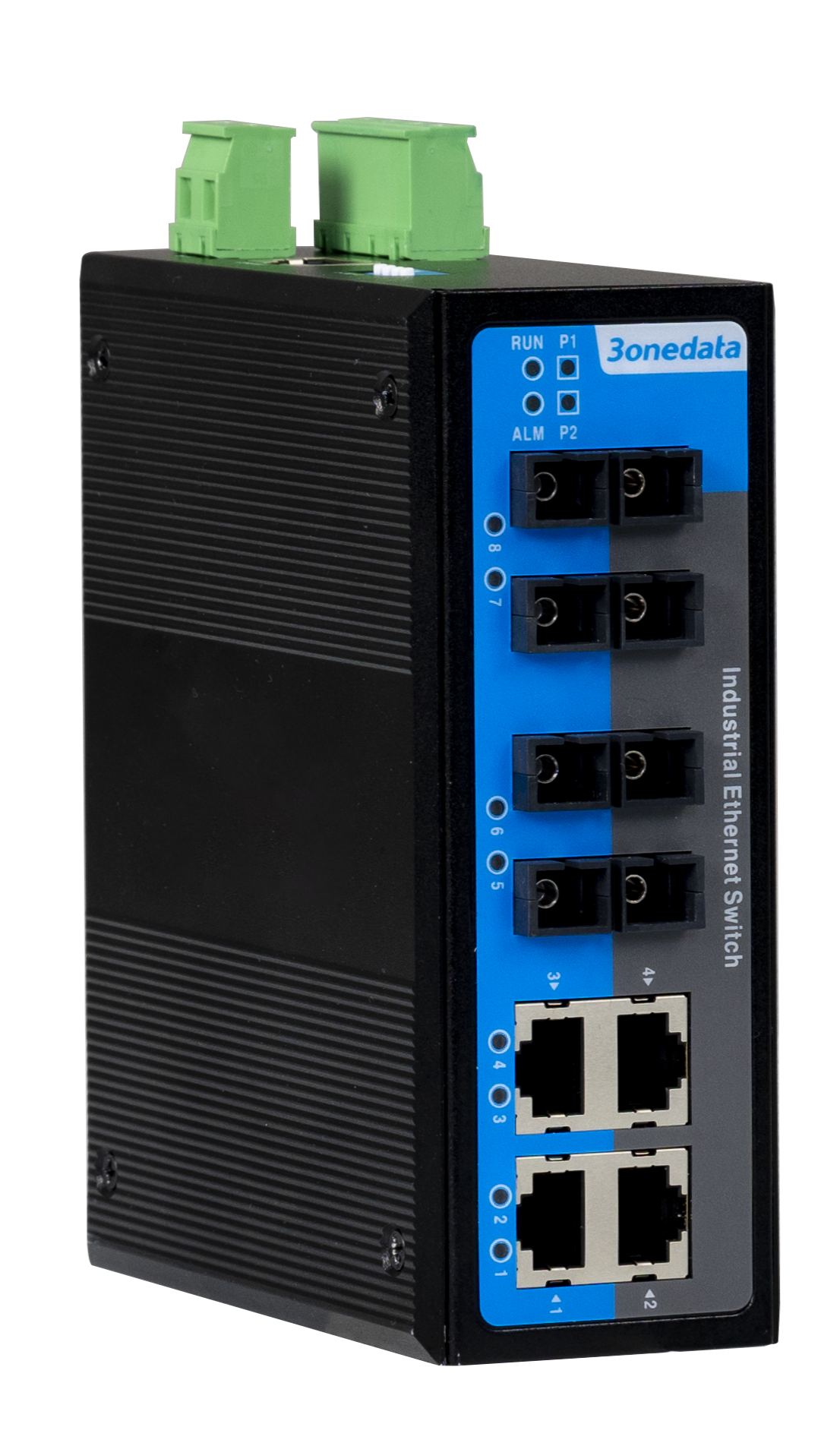

| IES318-4T4F-2P48 | 4 | 4 | 12/24/48VDC (9~60VDC) dual power supply |
| IES318-4T4F-P220 | 4 | 4 | 220VAC/DC (85~264VAC/DC) |

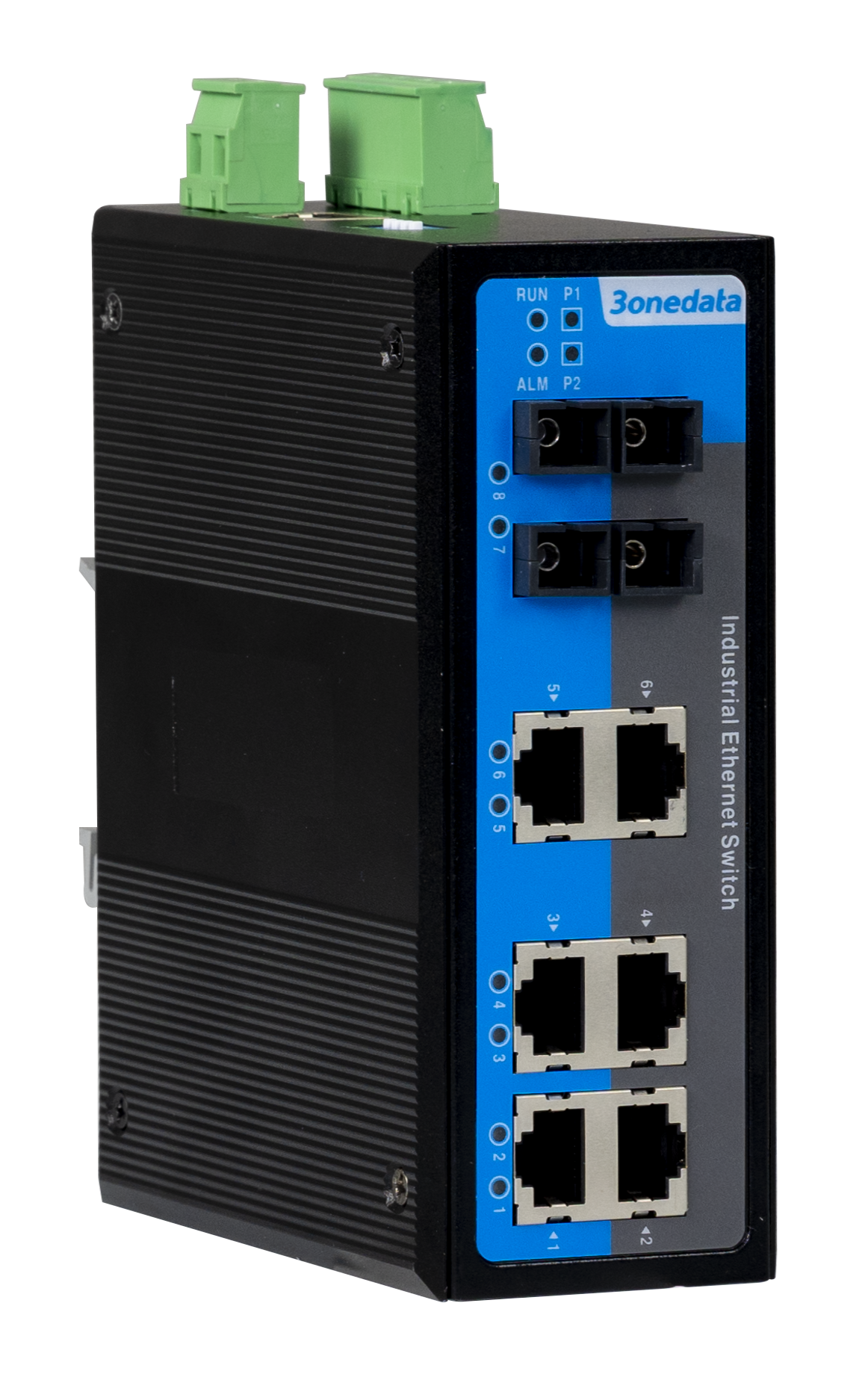

| IES318-6T2F-2P48 | 6 | 2 | 12/24/48VDC (9~60VDC) dual power supply |
| IES318-6T2F-P220 | 6 | 2 | 220VAC/DC (85~264VAC/DC) |

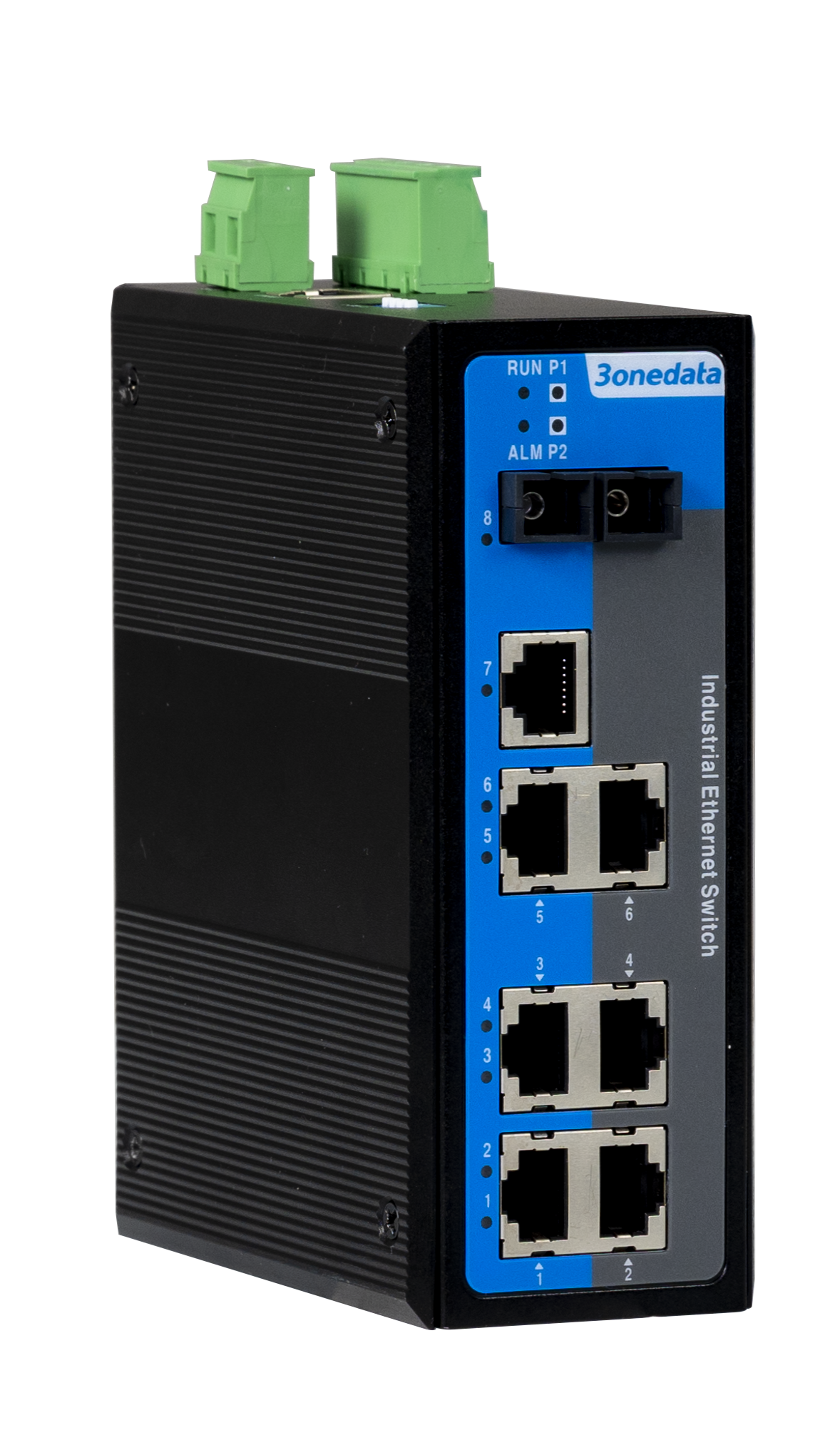

| IES318-7T1F-2P48 | 7 | 1 | 12/24/48VDC (9~60VDC) dual power supply |
| IES318-7T1F-P220 | 7 | 1 | 220VAC/DC (85~264VAC/DC) |

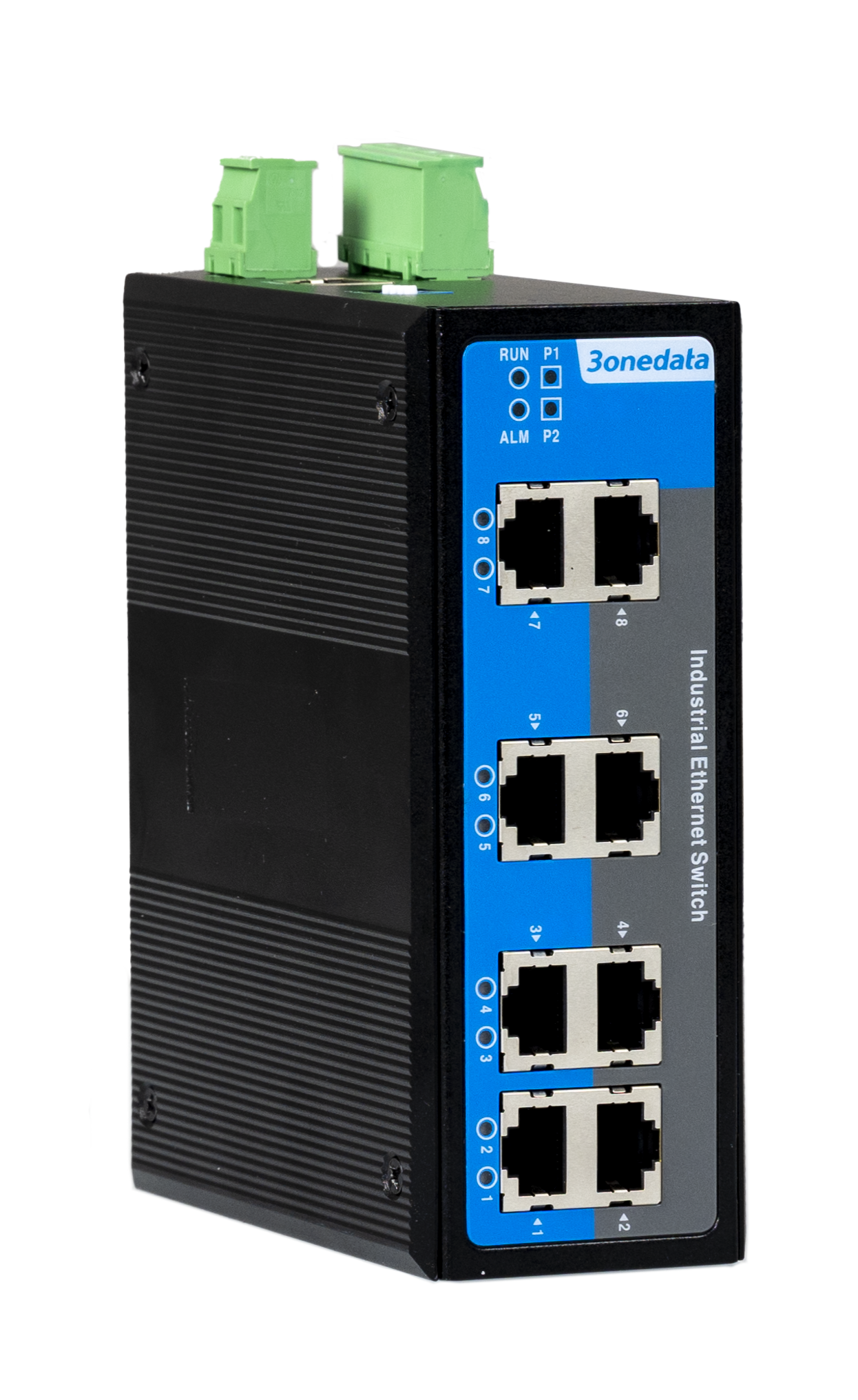

| IES318-8T-2P48 | 8 | — | 12/24/48VDC (9~60VDC) dual power supply |
| IES318-8T-P220 | 8 | — | 220VAC/DC (85~264VAC/DC) |
