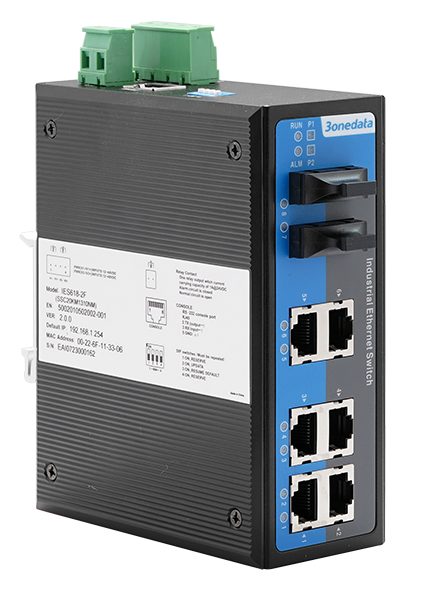

8 Port Layer 2 Managed Industrial Ethernet Switch

Overview of 3onedata’s 8 Port Layer 2 Managed Industrial Ethernet Switch IES618 Series

IES618 series are layer 2 managed industrial Ethernet switches. This series provides 6 types of products and support different combination schemes of copper port and fiber port, which can meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, ERPS, 802.1Q VLAN, QoS Function, Port Trunking, Port Mirroring, LLDP, 802.1X. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

DIP switch can achieve restoring factory defaults. When DC power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Additional Features

SNMPv1/v2c is used for network management of various levels

Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

QoS supports real-time traffic classification and priority setting

File management is convenient for the device rapid configuration and online upgrading

Port statistics can be used for the port real time traffic statistics

User password can conduct user hierarchical management to improve the device management security

Relay alarm is convenient for troubleshooting of construction site

Storm suppression can restrain broadcast, unknown multicast and unicast

VLAN is used for simplifying network planning

Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status

IGMP Snooping can be used for filtering multicast traffic to save the network bandwidth

SW-Ring, ERPS and STP/RSTP can achieve network redundancy, preventing network storm

LLDP can achieve automatic topology discovery, which is convenient for visual management

802.1X authentication could strength the flexibility and security of network

Loop protection could efficiently eliminate the influence caused by port loopback by detecting the existence of port loopback

Support port and power connection exception alarm, port rate, CPU and memory utilization rate threshold alarm
