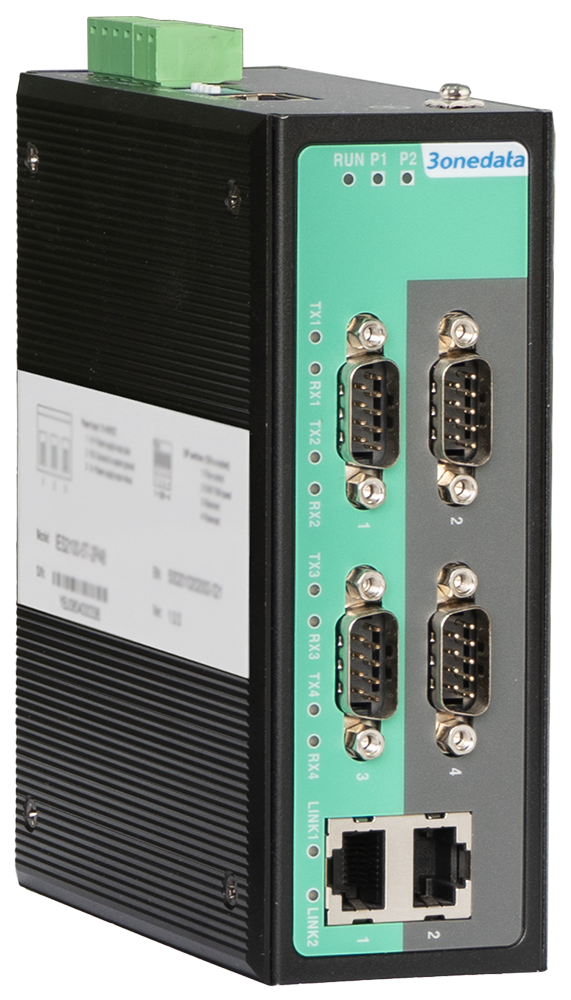

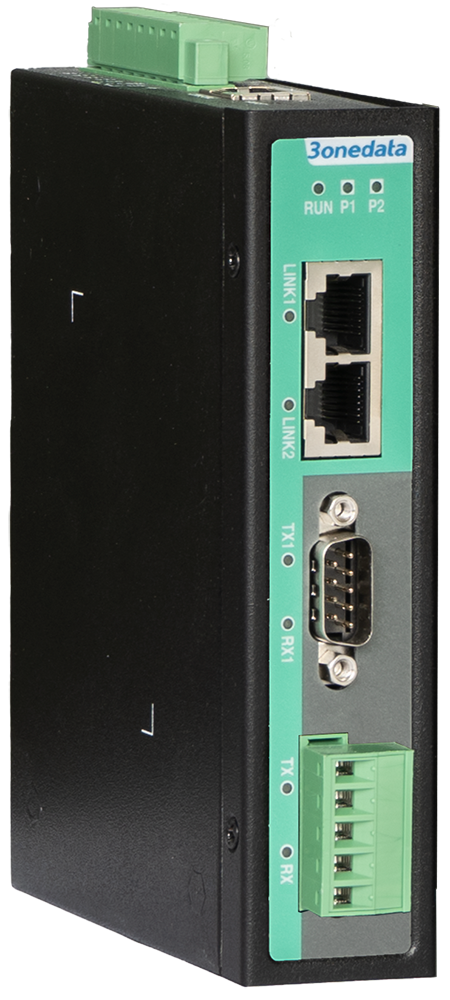

DIN-Rail Mounting 1/2/4 RS-232/485/422 + 2 100M Ethernet Ports Modbus Gateway

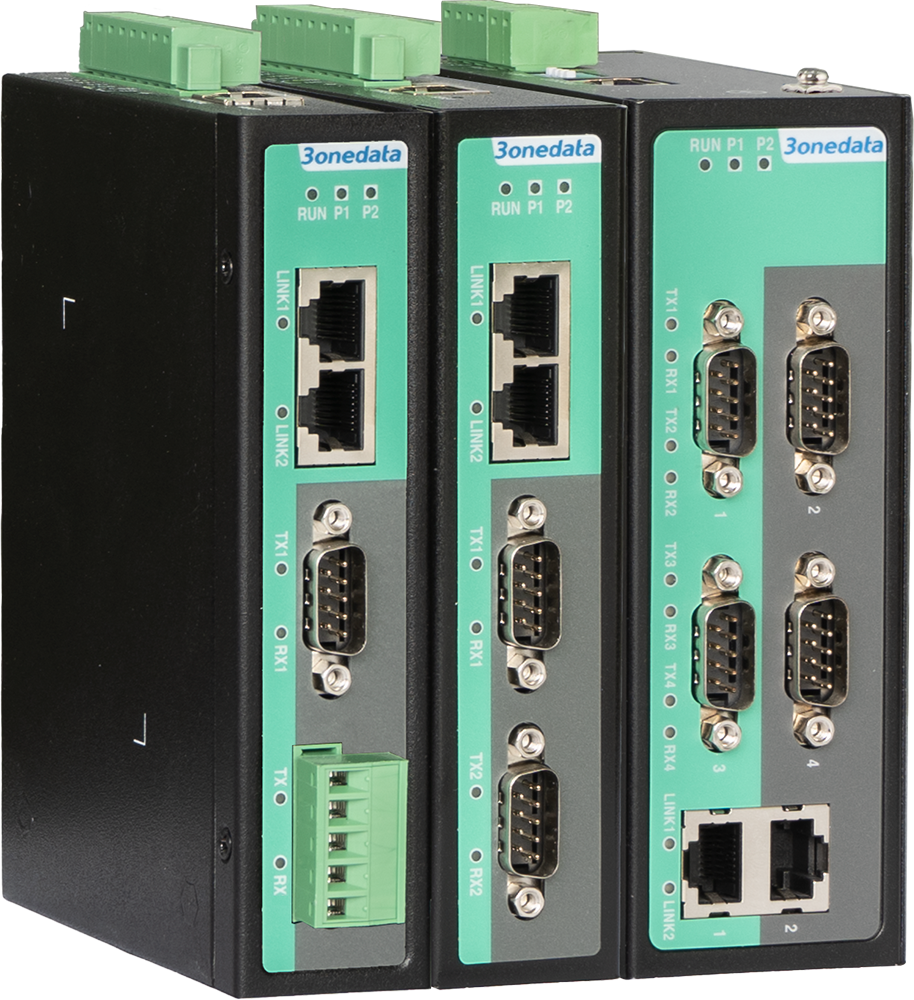

Overview of 3onedata’s 1/2/4 Port RS-232/485/422 Serial-to-Ethernet Modbus Gateways IGW1111/IGW1112/IGW1114 Series

IGW1111/IGW1112/IGW1114 series are Modbus gateways designed for integrating Modbus RTU/ASCII and Modbus TCP networks; they can achieve the conversion between Modbus RTU/ASCII and Modbus TCP protocols. This series provide 3 types of products and support 1/2/4 3IN1 serial ports and 2 100M Ethernet copper ports. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH，SMTP, SNTP，DNS and DHCP protocols. It possesses complete management function, and supports access control, rapid configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes are supported; it supports up to 256 Modbus TCP client (master) accesses and connects up to 128 Modbus TCP server (slave) devices. TELNET, WEB, SSHD and other access modes are also supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
RESET button or DIP switch can achieve restoring factory defaults of the device. Each serial port of the device with single-port isolation is equipped with an exclusive isolation component, which can effectively avoid the impact of electromagnetic interference. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.

Addtional Features

 Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backup

 Support 110bps-115200bps (customizable 921600bps) line speed and non-blocking communication

 Support RTS/CTS, DTR/DSR and XON/XOFF flow control

 Support response timeout setting of characters

 Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes

 Support up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave) devices

 Support virtual and real ID mapping to achieve flexible access between Master and Slave devices

 Support IP address and MAC address filtering, which can achieve accurate access control easily

 Support graded user management to implement humanized authority management

 Support serial port status and parameters monitoring, ensuring the communication status is easy to read

 Support multiple configuration forms and access controls like Windows configuration tool, TELNET, SSHD and WEB

 File management is convenient for the device rapid configuration and online upgrading

 SSHD and HTTPS can guarantee the access security of data

 Conduct network diagnosis and troubleshooting via Ping and Traceroute

 Support multiple alarm methods, including e-mail alarm, log alarm and SNMP Trap alarm
