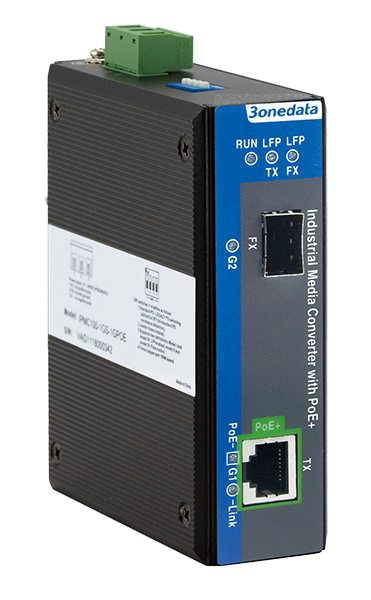

2 Port or 3 Port Full Gigabit Unmanaged PoE Media Converter
One Gigabit fiber port or SFP slot optional, one or two Gigabit PoE copper ports optional
Maximum power consumption of single port PoE is 30W
PoE provides power supply to powered device via Ethernet, which can reduce the cable connection of powered device
Support input voltage 48VDC
Support -40~80℃ wide temperature operation
Overview of 3onedata’s 2 Port or 3 Port Gigabit PoE Fiber Media Converter IPMC100 Series
IPMC100 series are 2/3-port full Gigabit unmanaged industrial PoE media converter. PoE power supply conforms to IEEE 802.3af/at protocol standard. This series include four types of products and provide Gigabit copper port, Gigabit fiber port, Gigabit SFP slot and Gigabit PoE copper port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.
Design of DIP switch can realize the switching of PoE power supply modes of standard PD and non-standard PD, Flow Control, Jumbo Frame, RJ45 with the specified speed of 100M. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1af for PoE IEEE 802.3at for PoE+ |
|||||||||||||||
| PoE | Maximum power consumption of PoE port: 30W
Power supply pin: V+, V+, V-, V- corresponding pin 1, 2, 3, 6 |
|||||||||||||||
| Interface | Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 1000Base-FX, SC/ST/FC optional SFP slot: 100/1000Base-SFP |
|||||||||||||||
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, PoE Indicator, LFP indicator | |||||||||||||||
| Switch Property | Transmission mode: store and forward
MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 14G Switch time delay: < 10μs |
|||||||||||||||
| Power Requirement | 12~48VDC (PoE 48VDC), 3-pin 7.62mm pitch terminal blocks | |||||||||||||||
| Power Consumption |
|
|||||||||||||||
| Environmental Limit | Operating temperature: -40~80℃
Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation） |
|||||||||||||||
| Physical Characteristic | Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting Dimension (W x H x D): 36mm×110mm×97mm Weight: ≤400g |
|||||||||||||||
| Industrial Standard | IEC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV Contact discharge: ±6kV EN61000-4-4 (EFT), Level 3 IEC61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||||||||||||||
| Certification | CE, FCC, RoHS | |||||||||||||||
| Warranty | 5 years |

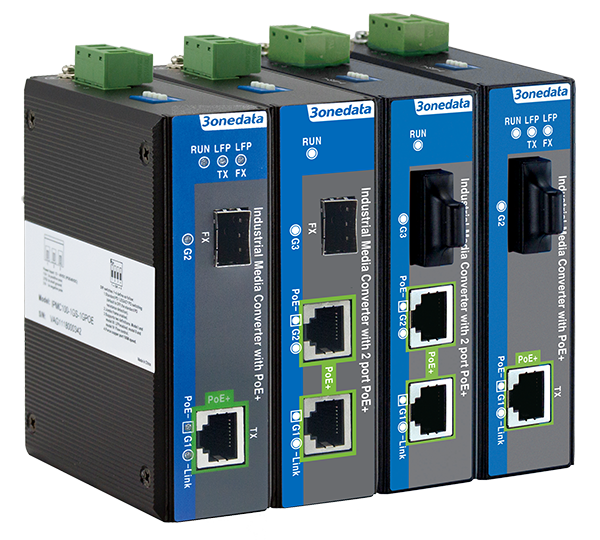

| Available Models | Gigabit Fiber Port | Gigabit SFP Slot | Gigabit PoE Copper Port | Power Supply Range |
| IPMC100-1GF-1GPOE | 1 | – | 1 | 12~48VDC
(PoE 48VDC) |
| IPMC100-1GF-2GPOE | 1 | – | 2 | |
| IPMC100-1GS-1GPOE | – | 1 | 1 | |
| IPMC100-1GS-2GPOE | – | 1 | 2 |
