Wall Mounting or DIN-Rail Mounting 1 RS-232/485/422 Serial-to-Fiber Modem
Support 1 RS-232, RS-485/422 or 3IN1 serial port to 1 fiber port
Support advanced communication coding and clock recovery technology to ensure accurate transmission of distant data
Support unique “Zero time delay and automatic forwarding” technology
Support autotunning technology of serial baud rate
Support 5VDC, 12-48VDC, -48VDC and 220VAC four power supply solutions
Introduction

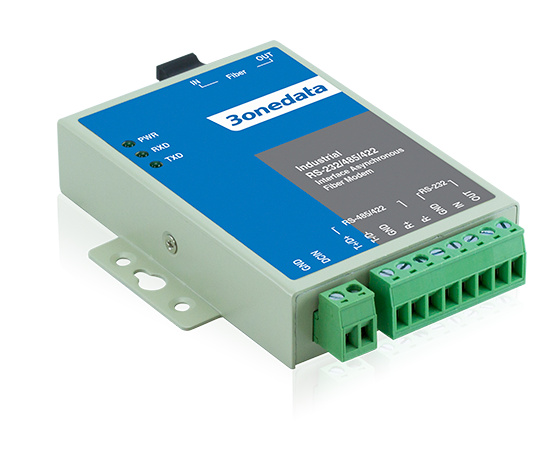

MODEL277 series are serial-to-fiber modems that convert RS-232/485/422 serial port signal to optical signal. This series include 3 types of optional products and support 1 RS-232, RS-485/422 or 3IN1 serial port to 1 fiber port. It adopts wall mounting or DIN-Rail mounting to meet the requirements of different application scenes.
This series adopt advanced communication coding and clock recovery technology to avoid data transmission error. And it adopts unique “Zero time delay and automatic forwarding” technology to enhance the anti-interference capability of interface and achieve real zero time delay. It can conduct automatic detection of baud rate, even the baud rate of the device serial signal changes; the converter can still achieve RS-232 or RS-485/422 to optical port conversion. MODEL277 series can be widely used in various industrial control, process control, traffic control, intelligent community and other scenes, especially suitable for bank, power industry, departments and systems with special requirements for electromagnetic interference.
| Fiber Interface | Number of interfaces: 1
Interface form: optional SC/ST/FC port Transmission distance: Multimode: 2km Single mode: 20/40/60/80/100/120Km
Transmission wavelength: Multimode: 1310nm Single mode: 1310nm or 1550nm |
| Serial port | Standards: EIA RS-232C, RS-485, RS-422
Number of interfaces: Support 1 RS-232, RS-485/422 or 3IN1 serial port RS-232 signals: OUT, IN, GND RS-485 signals: D+, D-, GND RS-422 signals: T+, T-, GND, R+, R- Baud rate: 300bps-115200bps MODEL277 interface form: RS-232/485/422 serial port, adopts 8-pin 5.08mm pitch terminal blocks MODEL277A interface form: RS-232 serial port, DB9 female MODEL277B interface form: RS-485/422 serial port, adopts 5-pin 5.08mm pitch terminal blocks Direction control: RS-485 direction adopts ADDC (Automatic Data Direction Control) technology Load capacity: RS-485/422 end supports 64 points polling environment Transmission distance: RS-232, 15m; RS-485/422, 1200m RS-485 pull high/low resistor: 4.7kΩ |
| Indicator | Power supply indicator, fiber port data receiving and alarm indicator, fiber port data sending indicator |
| Power supply | MODEL277
Input power supply: 12～48VDC Connection mode: 2-pin 5.08mm pitch terminal blocks
MODEL277A, MODEL277B three optional power supply solutions External power supply: 5VDC, adopts DC round head for connection, MODEL277B supports 2.0A overcurrent protection Built-in power supply: -48VDC, adopts 3-pin 5.08mm pitch terminal blocks; 220VAC, adopts 3-hole AC socket with switch |
| Environmental Limits | MODEL277:
Operating temperature: -40～75℃ Storage temperature: -40～75℃ Relative humidity: 5%~95% (no condensation)
MODEL277A, MODEL277B: Operating temperature: -10~60℃ Storage temperature: -40～85℃ Relative humidity: 5%～95% (no condensation) |
| Mechanical structure | Housing: IP30 protection grade, metal shell
Installation: wall mounting or DIN-Rail mounting (DIN-Rail accessories should be purchased separately) MODEL277 dimension (W×H×D): 100mm×69mm×22mm
MODEL277A, MODEL277B dimension (W×H×D): External power supply: 94mm×70.6mm×26mm Built-in power supply: 173.2mm×115mm×30mm |
| Certification | CE, FCC, RoHS |
| Warranty | 3 years |
| Optional models | Fiber port | RS-232 | RS-485/422 | 3IN1
(RS-232/485/422) |
Power supply |
| MODEL277 | 1 | ─ | ─ | 1 | 12～48VDC |
| MODEL277A | 1 | 1 | ─ | ─ | optional 5VDC, -48VDC or 220VAC |
| MODEL277B | 1 | ─ | 1 | ─ |
