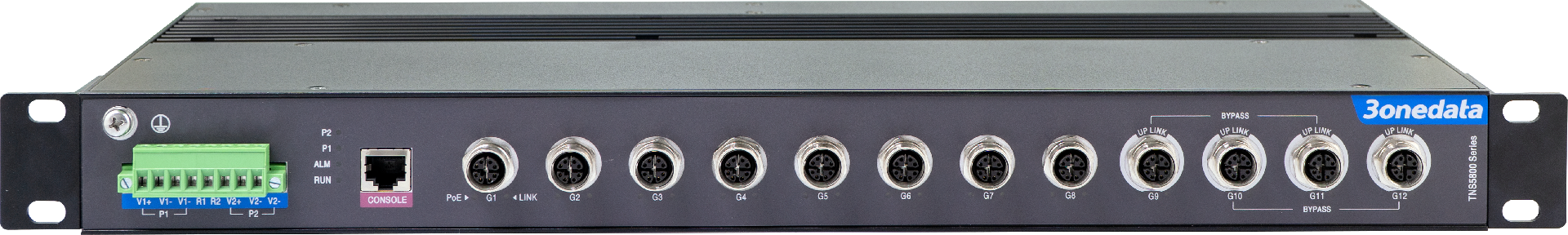

1U Rack Mounting 12-port Layer 3 Industrial Ethernet Switch for Rail Transit
Support 4 Gigabit M12 interfaces (with 2 groups of Bypass function), 8 100M or Gigabit M12 interfaces
Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
Support 2 110VDC power supply inputs
Support IP40 protection grade
Support -40~75℃ wide operating temperature range
Introduction
TNS5800 series is layer 3 industrial Ethernet switch designed for rail transit. The product conforms to the requirements of industrial standard EN50155 and EN50121. Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. This series has 2 products. They provide 110VDC power supply input and adopt rack-mounted installation, which can meet the needs of different application sites.
The network management system supports various network protocols and industry standards, such as static routing, RIP, OSPF, VRRP, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This device has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It is designed for rail transit industrial and can be widely used in systems such as train control, on-board PIS, CCTV.
Additional Features
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server can be used for distributing IP address with different strategies
File management is convenient for the device rapid configuration and online upgrading
Port statistics can be used for the port real time traffic statistics
ARP could be used for MAC address resolution
User password can conduct user hierarchical management to improve the device management security
Access control, ACL and 802.1X authentication can enhance the flexibility and security of the network
Storm suppression can restrain broadcast, unknown multicast and unicast
SSHD configuration could encrypt transmitted data, prevent DNS and IP spoofing
TELNET configuration and SSH configuration guarantee secure access to data
VLAN can be set to simplify network planning
Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port isolation could achieve port isolation in the same VLAN and save VLAN resources
PIM-DM/PIM-SM, IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth
Ring, ERPS, STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Ping, Traceroute, Port Loopback could achieve network diagnosis and troubleshooting
VRRP, RIP, OSPF could implement dynamic router configuration
Bypass function can prevent communication breakdown caused by power supply failure
NAT maps private IP address to the legal IP address of external network, which can slow the consumption of IP address space
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
ce of loopback
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP ITU-T G.8032 for ERPS |
| Management | SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP |
| Security | Classification of User Permissions, ACL, NAT, 802.1X authentication, Radius server authentication, port alarm, power alarm, storm suppression, SSHD configuration, Telnet configuration |
| Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
| Unicast / Multicast | Static Multicast, IGMP-Snooping |
| Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
| Troubleshooting | Ping, Traceroute, Port Loopback |
| Routing Technique | VRRP, RIP, OSPF |
| Time Management | NTP |
| Interface | Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning; it supports two groups of Bypass
100M M12: 10/100Base-T(X), M12(Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Alarm ports: 8-pin 5.08mm pitch terminal blocks, relay occupies 2 pins and 1 relay alarm information output is supported, the current load capability is 1A@30VDC or 0.3A@125VAC Console port: CLI command line management port(RS-232), RJ45 |
| Indicator | Power indicator, alarm indicator, running indicator, interface indicator |
| Switch Property | Transmission mode: store and forward
MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 128G Switch time delay: <10μs |
| Power Supply | Power supply range: 110VDC (66~156VDC), dual power supply redundancy
Connection method: 8-pin 5.08mm pitch terminal blocks (includes 6-pin power supply) Connection protection: anti-reverse connection |
| Power Consumption | < 20W |
| Working Environment | Operating temperature: -40~75℃
Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal
Installation: 1U rack mounting Dimension (W x H x D): 482.6mm×44.45mm×200mm (lugs are included) Weight: ≤ 3.5kg |
| Industrial Standard | EN 50121-3-2: 2016 standard, Table 5.3 (Electrostatic Discharge), Level A
l Air discharge: ±8kV l Contact discharge: ±6kV EN 50121-3-2: 2016 standard, Table 3.3 (Surge), Level A l Power supply: common mode±2kV, differential mode±1kV EN 50121-3-2: 2016 standard, Table 3.2 (Electrical Fast Transient Pulses), Level A l Power supply: ±2kV l Signal: ±2kV EN 50121-3-2: 2016 standard, Table 5.1, 5.2 (Radio Frequency Electromagnetic), Level A l 80MHz~800MHz，20V/m l 800MHz~1GHz，20V/m l 1.4GHz~2.0GHz，10V/m l 2.0GHz~2.7GHz，5V/m l 5.1GHz~6GHz，3V/m EN 50121-3-2: 2016 standard, Table 3.1, 4.1 (Conducted Disturbance Induced by RF Fields), Level A l Power supply: 0.15MHz~80MHz, 10V l Signal: 0.15MHz~80MHz, 10V EN 50121-3-2: 2016 standard, table 3.1 (Power Supply Conducted Disturbance) l 150kHz~500kHz, 79dBμV quasi-peak value l 500kHz~30MHz, 73dBμV quasi-peak value EN 50121-3-2: 2016 standard, table 3.1 (Radiation Disturbance) l 30MHz~230MHz, ＜40dBμV/m quasi-peak value l 230MHz~1GHz, ＜47dBμV/m quasi-peak value Shock: IEC 61373 Free fall: IEC 60068- 2- 32 Vibration: IEC 61373 |
| Authentication | CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373 |
| Warranty | 5 years |
| Available Models | 100M M12 | Gigabit M12 | Gigabit Bypass M12 | Power Supply |
| TNS5800-12GT-X-2P110 | – | 8 | 4 | 110VDC
Redundant power supply |
| TNS5800-8T4GT-2P110 | 8 | – | 4 |
