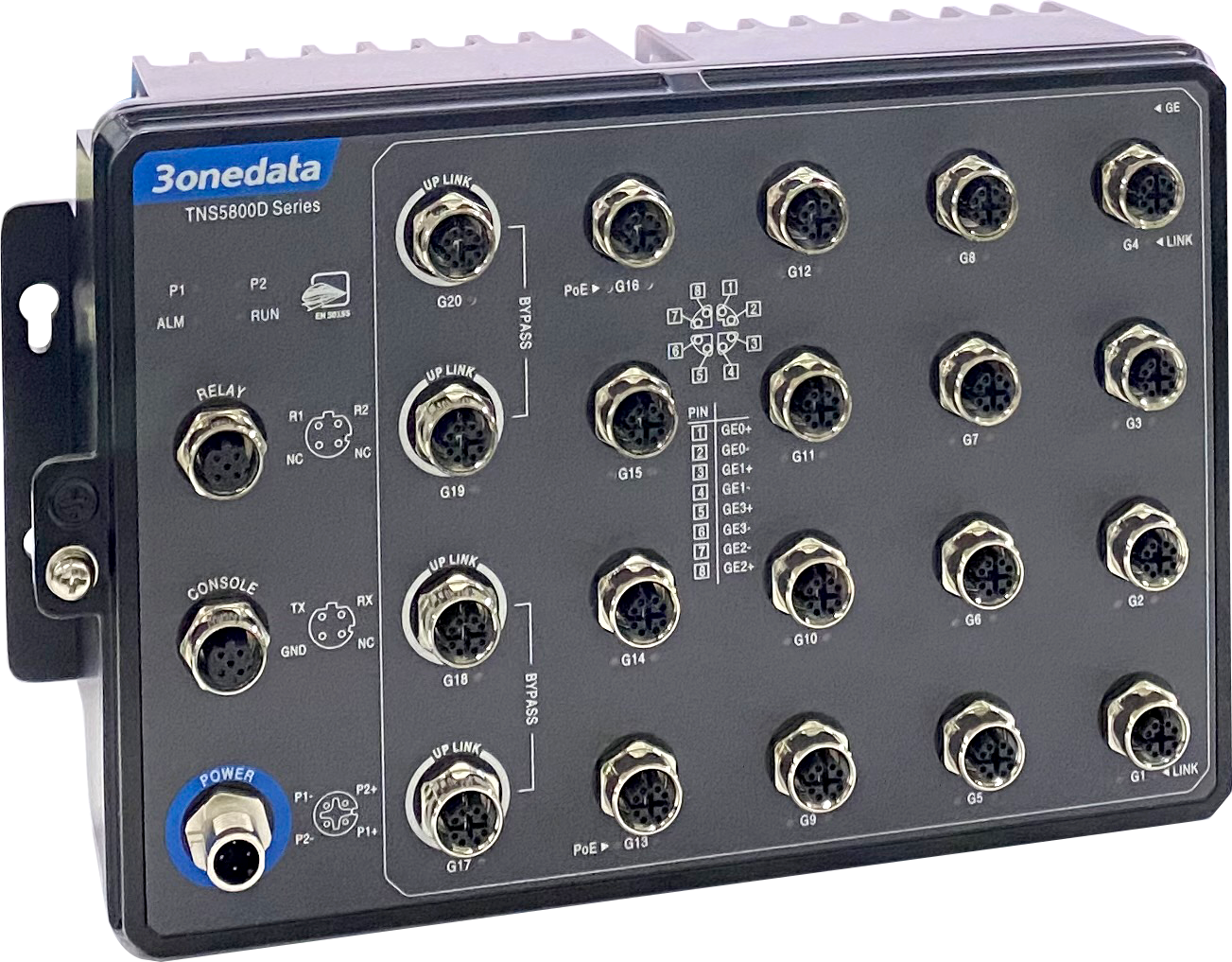

Wall Mounting 20-port 100M/Gigabit Layer 3 EN50155 Industrial Ethernet Switch
Support 4 Gigabit M12 interfaces (with 2 groups of Bypass function)
Support up to 16 100M M12 interfaces, PoE (optional)
Support up to 16 Gigabit M12 interfaces, PoE (optional)
Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
Support 2 110VDC or 24VDC power supply inputs (optional)
Support IP67 protection grade
Support -40~75℃ wide operating temperature range
Introduction
TNS5800D series are layer 3 industrial Ethernet switches. The product conforms to the requirements of industrial standard EN50155 and EN50121. Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. PoE power supply conforms to IEEE802.3af/at protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. This product supports 110VDC or 24VDC power supply input and adopts wall mounting, which can meet the needs of different application sites.
The network management system supports various network protocols and industry standards, such as static routing, RIP, VRRP, NAT, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This devices have passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in systems such as train network, signal, on-board PIS, CCTV.
Additional Features
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server can be used for distributing IP address with different strategies
File management is convenient for the device rapid configuration and online upgrading
Port statistics can be used for the port real time traffic statistics
ARP could be used for MAC address resolution
User password can conduct user hierarchical management to improve the device management security
Access Control can enhance network flexibility and security
Storm suppression can restrain broadcast, unknown multicast and unicast
SSHD configuration could encrypt transmitted data, prevent DNS and IP spoofing
TELNET configuration and SSH configuration guarantee secure access to data
VLAN can be set to simplify network planning
Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port isolation could achieve port isolation in the same VLAN and save VLAN resources
PIM-DM/PIM-SM, IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth
Ring, ERPS, STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Ping, Traceroute, Port Loopback could achieve network diagnosis and troubleshooting
VRRP, RIP, OSPF could implement dynamic router configuration
Bypass function can prevent communication breakdown caused by power supply failure
NAT maps private IP address to the legal IP address of external network, which can slow the consumption of IP address space
PoE could power device via Ethernet, which has greatly saved the cost of device power supply
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+ ITU-T G.8032 for ERPS |
| Management | SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Port Statistics, Log Information, Static ARP, PoE Management (for PoE version) |
| Security | Classification of User Permissions, NAT, 802.1X Authentication, DHCP Snooping, Radius Server Authentication, Port Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Link Flapping Protection, Aggregation Protection |
| Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation |
| Unicast / Multicast | Static Multicast, Multicast Routing, IGMP-Snooping, PIM-SM, PIM-DM |
| Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
| Troubleshooting | Ping, Traceroute, Port Loopback |
| Time Management | NTP |
| Interface | Gigabit PoE M12:10/100/1000base-T (X), M12 (Female), 8-Pin X-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 2 of PoE power supply are positive, while pin 3 and 4 are negative
Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning；it supports two groups of Bypass 100M PoE M12:10/100base-T (X), M12 (Female), 4-Pin X-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative 100M M12: 10/100Base-T(X), M12(Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Alarm port: M12 (Female), 4-Pin D-Coded, support 1 relay alarm output, current load capability is 1A@30VDC or 0.3A@125VAC Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded |
| Indicator | Power indicator, alarm indicator, running indicator, interface indicator |
| Switch Property | Transmission mode: store and forward
MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 56G Switch time delay: <10μs |
| Power Supply | Power supply range: 110VDC (66~156VDC) or 24VDC (9~36VDC / 18~36VDC)
Connection method: M12(Male), 4-Pin A-Coded Connection protection: anti-reverse connection |
| Power Consumption | Full load (no PoE load): < 20W
Full load (including PoE load): ＜120W |
| Working Environment | Operating temperature: -40~75℃
Storage temperature: -40~85℃ Relative humidity: 5%~95%(no condensation) |
| Physical Characteristic | Housing: IP67 protection, metal
Installation: wall mounting Dimension (W x H x D): 260mm×70mm×160mm Weight (TNS5800D-16P4GT-P24): 2.496kg |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
l Air discharge: ± 15kV l Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Power supply: ±4kV l Ethernet interface: ±2kV l Relay: ±4kV
IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±4kV, differential mode±2kV l Relay: common mode ±4kV, differential mode±2kV l Ethernet interface: common mode±4kV
Shock: IEC 61373 Free fall: IEC 60068-2-32 Vibration: IEC 61373 |
| Authentication | CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373, EN45545 |
| Warranty | 5 years |
| Available Models | 100M
PoE M12 |
100M M12 | Gigabit M12 Port With Bypass | Gigabit
PoE M12 |
Gigabit
M12 |
Power Supply |
| TNS5800D-20GT-P110 | — | — | 4 | — | 16 | 110VDC
(66~156VDC) |
| TNS5800D-16T4GT-P110 | — | 16 | 4 | — | — | 110VDC
(66~156VDC) |
| TNS5800D-16T4GT-P24 | — | 16 | 4 | — | — | 24VDC
(9~36VDC) |
| TNS5800D-16GP4GT-P110 | — | — | 4 | 16 | — | 110VDC
(66~156VDC) |
| TNS5800D-16GP4GT-P24 | — | — | 4 | 16 | — | 24VDC
(18~36VDC) |
| TNS5800D-16P4GT-P110 | 16 | — | 4 | — | — | 110VDC
(66~156VDC) |
| TNS5800D-16P4GT-P24 | 16 | — | 4 | — | — | 24VDC
(18~36VDC) |
