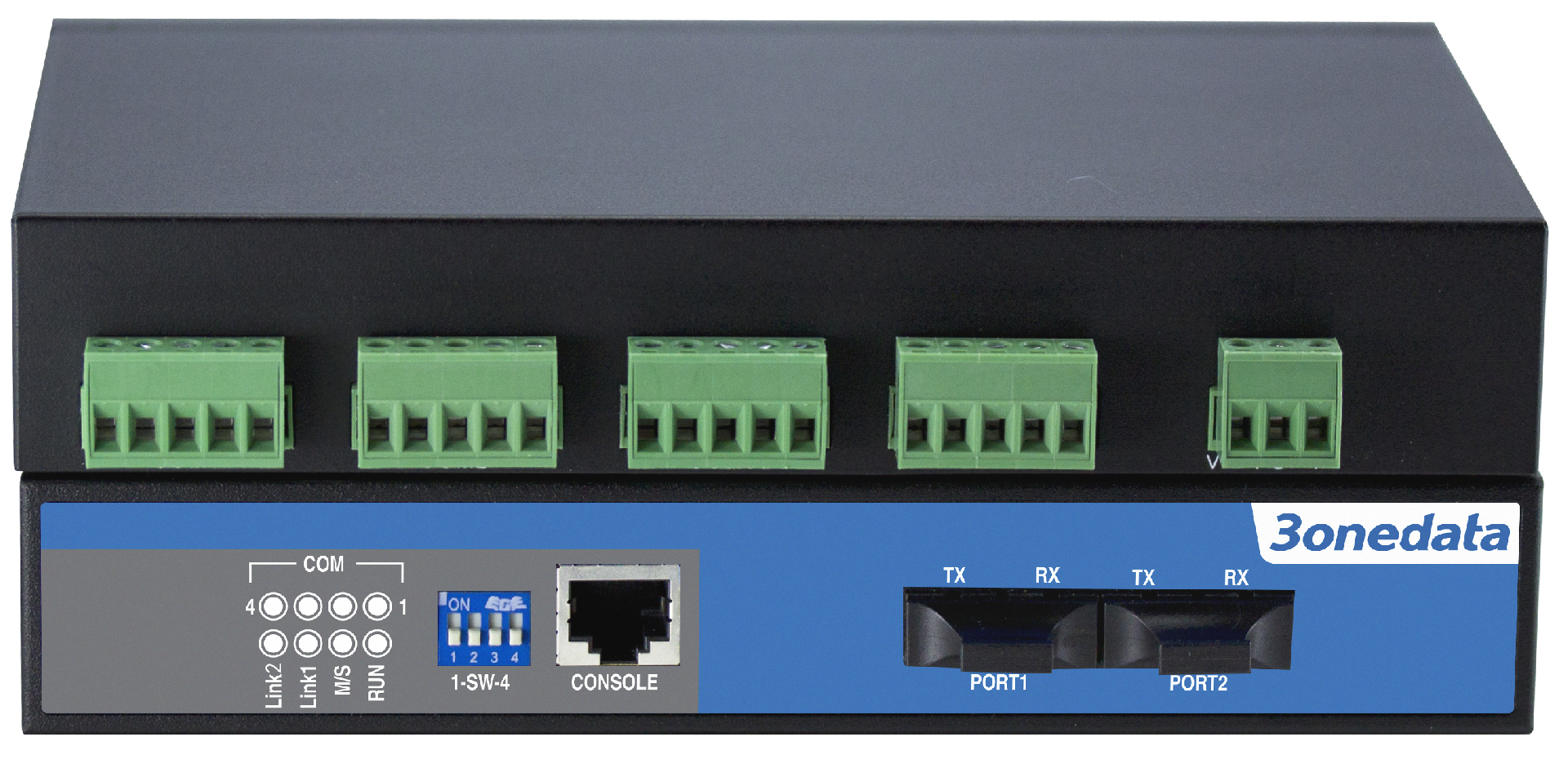

Wall or Rack Mounting 4 RS-485 and 2 Fiber Port Unmanaged Ring Network Serial to Fiber MODEM
Support 4 RS-485 serial ports to 2 fiber ports.
Fiber port supports ring network function, and the automatic recovery time of network failure is < 20ms.
Support 0-115200bps line speed and non-blocking communication
Support 12~48VDC or 100~240VAC wide voltage range(optional)
Giới thiệu
IMF204-2F series are high-performance unmanaged ring network serial to fiber MODEM designed for industrial application. This product supports point-to-point dual fiber port backup, or ring network redundancy of multiple devices. This product provides 4 RS-485 serial ports and 2 fiber ports. It adopts wall or rack mounting to meet the requirements of different application scenes.
DIP switch can implement master and slave configuration of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in electricity distribution automation, industrial automation, transportation, telecommunication and other fields.
| Fiber interface | Interface quantity: 2 (support ring network redundancy)
Interface form: SC/ST/FC (optional) Transmission speed: 100Mbps Khoảng cách truyền dẫn: Đa mode: 2km Single mode: 20km
Bước sóng truyền dẫn: Đa mode: 1310nm Đơn mode: 1310nm hoặc 1550nm |
|||||||||
| Cổng nối tiếp | Standard: EIA RS-485
Quantity of serial port: 4 RS-485 serial port Tín hiệu RS-485: D+, D−, GND Baud rate: 0~115200bps Bit dữ liệu: 5 bit, 6 bit, 7 bit, 8 bit Bit chẵn lẻ: Không (None), chẵn (Even), lẻ (Odd), Space, Mark Bit dừng: 1 bit, 1.5 bit, 2 bit Interface form: 5-pin 5.08mm pitch terminal blocks Directional control: RS-485 direction adopts Automatic Data Direction Control technology Load capacity: RS-485/422 supports 32 points polling (customizable 128 points) Interface protection: 1.5kVAC isolation protection |
|||||||||
| Đèn báo | Running status indicator, master/slave device status indicator, fiber port indicator, serial port indicator | |||||||||
| Nguồn cấp | IMF204-2F-4DI(RS-485)-P(12~48VDC)
12~48VDC, 3-pin 5.08mm pitch terminal blocks Power supply nonpolarity
IMF204-2F-4DI(RS-485)-P(100~240VAC) 100~240VAC, 3-pin 5.08mm pitch terminal blocks |
|||||||||
| Công suất tiêu thụ |
|
|||||||||
| Môi trường làm việc | Operating temperature: -10~70℃
Storage temperature: -10~70℃ Độ ẩm tương đối: 5% ~ 95% (không ngưng tụ) |
|||||||||
| Thông số vật lý | Vỏ thiết bị: kim loại, cấp bảo vệ IP30
Installation: wall or rack mounting Dimension (W x H x D): 200mm×35mm×120mm Weight: 603g |
|||||||||
| Xác thực | CE, FCC, RoHS | |||||||||
| Bảo hành | 3 years |
| Danh sách model | Fiber Port | RS-485 | Nguồn cấp |
| IMF204-2F | 2 | 4 | 12~48VDC |
