Embedded Mounting 12-Port Gigabit Layer 2 Managed Industrial Ethernet Switch Module
Support 8 10/100/1000Base-T(X) Gigabit copper ports and 4 1000Base-X Gigabit fiber ports
Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
Support multiple network protocols and industry standards, such as IPv6, STP/RSTP/MSTP, VLAN, QoS, LACP, DHCP, IGMP Snooping, LLDP, ACL, SNMP and MEP.
Input voltage: 3.3VDC
Support -40~75℃ wide operating temperature range
Introduction

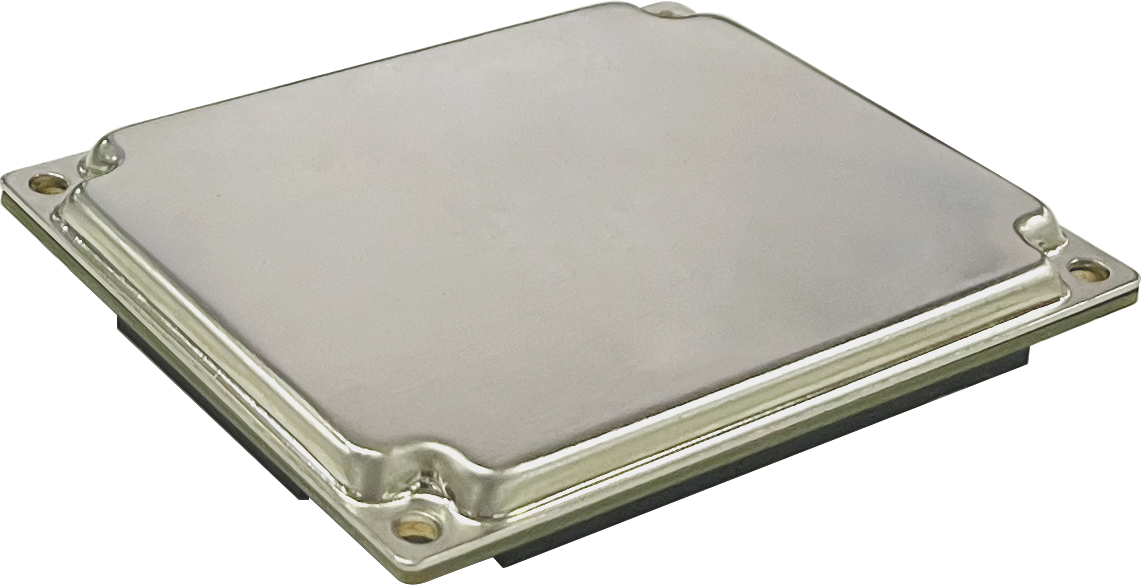

IEM6300-12G is a 12-port layer 2 managed embedded industrial Gigabit Ethernet switch module, which has the characteristics of high integration, small size, rich functions, simple and convenient operation. The product provides 8 Gigabit copper ports, 4 Gigabit fiber ports; Using embedded installation mode, users can customize the PCB floor specifications, through the module pins can choose any Ethernet interface type, to meet the needs of different application sites.
The network management system supports a variety of network protocols and industry standards, such as IPv6, Ring, STP/RSTP/MSTP, DHCP Server/Snooping/Relay, VLAN, QoS, IGMP Snooping, LLDP, Port Trunking and Port Mirroring. It possesses complete management functions and supports Port Configuration, NAS, ACL, Network Diagnosis, Online Upgrade, etc. CLI, WEB, TELNET, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
Hardware adopts low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Additional Features
IPv6 supports end-to-end security and provides enormous address space, facilitating the hierarchical network design
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server and DHCP client could be used for allocating IP address of different strategies
DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
File management is convenient for the device rapid configuration and online upgrading
User privilege classification configuration can set user privilege level
SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security
Support NAS network access service and provide security assurance for multiple services
MEP function can determine the scope and boundary of maintenance domain
Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Storm suppression can restrain broadcast, unknown multicast and unicast
VLAN is used for simplifying network planning
Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
IGMP Snooping can be used for filtering multicast traffic to save the network bandwidth
Support DDM (digital diagnostic monitoring) function, which can monitor the optical power, temperature and other real-time parameters of SFP fiber module with DDM function, facilitating the link default diagnosis of optical fiber
Network diagnosis and troubleshooting could be conducted via Ping, Ping6 and cable detection
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP IEEE 802.3ad for LACP |
|
| Management | SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, QoS, DHCP Server, DHCP Relay, Static MAC Address, LLDP, LLDP-MED, User Password, Login Method, File Management, Log Management, Port Statistics, MEP | |
| Security | User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Storm Suppression, DHCP Snooping, Relay Alarm, Loop Protection, Temperature Protection | |
| Switch Function | 802.1Q VLAN, Static Aggregation, LACP | |
| Unicast / Multicast | IGMP Snooping,Unicast MAC | |
| Redundancy Technology | Ring, STP/RSTP/MSTP | |
| Troubleshooting | Ping, Ping6, Cable Detection, Port Mirroring, DDMI | |
| Time Management | NTP server, NTP client, Time zone configuration | |
| Interface | Gigabit copper port: 8 10/100/1000Base-T(X)
Gigabit fiber port: 4 1000Base-X, SGMII Console port: TTL level serial data Alarm interface: support 2 alarm information inputs and 1 alarm information output |
|
| Switch Property | Transmission mode: store and forward
100M forwarding speed: 148810pps Gigabit forwarding speed: 1488100pps MAC address: 8K Buffer: 4Mbit Backplane bandwidth: 24G Switch time delay: <10μs |
|
| Power Supply | 3.3VDC | |
| Power Consumption | No-load: 2.7W (including DEMO board@12VDC)
Full-load: 8.4W (including DEMO board@12VDC) |
|
| Working Environment | Operating temperature: -40~75℃
Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
|
| Physical Characteristic | Installation: embedded mounting
Dimension (W x H x D): 90mm×10.4mm×72mm |
|
| Warranty | 5 years | |
| Available Models | Gigabit Copper Port | Gigabit Fiber Port | Power Supply |
| IEM6300-12G | 8 | 4 | 3.3VDC |
