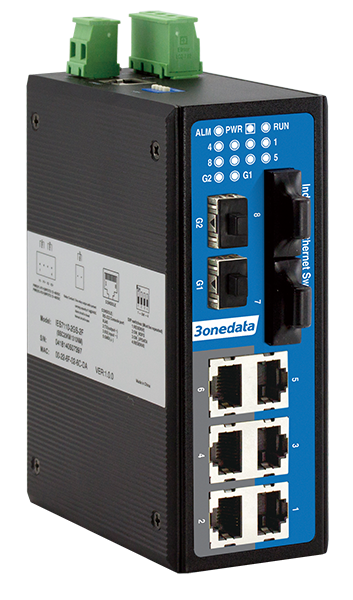

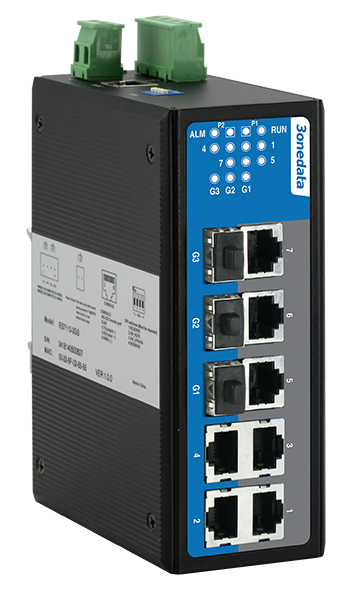

DIN-Rail or Wall Mounting 10-Port 100M/Gigabit Layer 2 Managed Industrial Ethernet Switch

Overview of 3onedata’s 10 Port Gigabit Layer 2 Managed Industrial Ethernet Switch IES7110 Series

IES7110 series are 10-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series provides 6 products and supports a variety of interfaces including 100M copper ports, 100M fiber ports, and Gigabit SFP slots. They adopt DIN-Rail mounting or wall mounting to meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS Function, LLDP, IGMP Snooping, Dynamic Multicast, Port Trunking, Port Mirroring, 802.1X. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

DC power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. The design of DIP switch could implement device factory setting recovery. When DC power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Additional Features
SNMPv1/v2c is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
File management is convenient for rapid configuration and online upgrade of the device
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device administrative security
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unknown unicast
VLAN can simplify the network planning
Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
IGMP-snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
