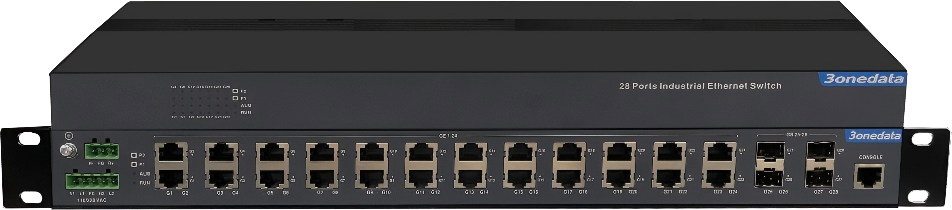

19-Inch 1U Rack Mounting 28-Port Full Gigabit Layer 2 Managed Industrial Ethernet Switch
Support 24 Gigabit copper ports and 4 Gigabit SFP slots
Support MRP ring network, reconfiguration time < 200ms
Support multiple network protocols and industrial standards, such as ARP, STP/RSTP/MSTP, ERPS, VLAN, LACP, GMP Snooping, LLDP, SNMP, etc., support Modbus TCP monitoring instruction of electricity SCADA system
DC product supports 2 24/48VDC (18-72VDC), dual power supply redundancy, support non-polarity
AC product supports 2 110/220VAC/DC (85-264VAC/77-300VDC), dual power supply redundancy
Support -40~85℃ wide temperature operation, support level 4 electromagnetic compatibility protection, and conform to IEC 61850-3 and IEEE 1613 (substation) standards
Introduction
MES5300 series products are 28-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series provides Gigabit copper port and Gigabit SFP slot, and adopts standard rack installation method, which is specially designed for extremely severe electromagnetic interference environment to meet the anti-interference requirements of power monitoring industry.
Network management system supports a variety of network protocols and industry standards, such as ARP, IPv4, Ring, MRP, VLAN, STP/RSTP/MSTP, ERPS, LLDP, IGMP Snooping, Modbus TCP, QoS, port trunking, port mirroring, etc. It has perfect management functions, supporting port configuration, port statistics, ACL, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery and restart. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits the industrial scene environment with harsh requirements for EMC. It can be widely used in smart substation, smart grid, energy storage, photovoltaic, wind electricity, non-electric industry SCADA system and other industrial fields.
Features and Benefits
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
File management is convenient for rapid configuration and online upgrading of the device
Log management records Console log, RAM log and Flash log
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device management security
ACL can enhance network flexibility and security
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unicast
TELNET configuration and SSH configuration guarantee secure access to data
Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
IGMP Snooping and static multicast can be used to filter multicast data to save network bandwidth
STP/RSTP/MSTP/Ring/MRP could implement network redundancy and prevent network storm
ARP could be used for MAC address resolution
With high reliability and stability, ERPS could avoid broadcast storm caused by data loopback
Network diagnosis and troubleshooting could be conducted via Ping, Traceroute, Cable Diagnosis, SFP Digital Diagnosis
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE802.1p for CoS IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP ITU-T G.8032 for ERPS |
|||||||||
| Management | SNMP v1/v2c/v3, RMON, LLDP, QoS, port settings, dynamic/static MAC address, MAC/IPv4, log report | |||||||||
| Security | Classification of User Permissions, Port and Power Alarm, MAC Security, Port Security, AAA, 802.1X Authentication, RADIUS, TACACS+, MAC-Based Authentication, Storm Control | |||||||||
| Switch Function | 802.1Q VLAN, link aggregation, flow control | |||||||||
| Unicast / Multicast | Multicast filtering, IGMP Snooping | |||||||||
| Redundancy Technology | STP/RSTP/MSTP, ERPS, Ring, MRP | |||||||||
| Troubleshooting | Log record, port mirroring, Ping, Traceroute, network cable diagnosis, SFP DDM | |||||||||
| Time Management | NTP | |||||||||
| Interface | Gigabit copper port: 10/100/1000Base-T(X) self-adaption,RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
Gigabit SFP: 1000Base-X SFP slot, support forced 100M Console port: CLI management port (RS-232), RJ45 Alarm port: support 1 relay alarm output, adopt 3-pin 5.08mm pitch terminal blocks, current carrying capacity is 2A@250VAC or 2A@220VDC |
|||||||||
| Indicator | Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator | |||||||||
| Switch Property | l Transmission mode: store and forward
l MAC address: 8K l Cache: 4.1Mbit l Backplane bandwidth: 56Gbps l Switch time delay: <10μs |
|||||||||
| Power Supply | Adopt 5-pin 5.08mm pitch terminal blocks
l DC product 2 24~48VDC (18-72VDC), dual power supply redundancy, support non-polarity l AC product 2 110/220VAC/DC (85-264VAC/77-300VDC), dual power supply redundancy |
|||||||||
| Power Consumption |
|
|||||||||
| Working Environment | Operating temperature: -40~85℃
Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
|||||||||
| Physical Characteristic | Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting Dimension (W x H x D): 491.6mm×44.45mm×290mm Weight: MES5300-24GT4GS-2LV: 4.868kg MES5300-24GT4GS-2HV: 5.252kg |
|||||||||
| Industrial Standard | IEC 61000-4-2 (ESD, electronic static discharge), Level 4
l Air discharge: ± 15kV l Contact discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4 l Power supply: ±4kV l Relay: ±4kV l Ethernet interface: ±2kV IEC 61000-4-5 (Surge), Level 4 l Power supply: common mode ±4kV, differential mode ±2kV l Relay: common mode ±4kV, differential mode ±2kV l Ethernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||||||||
| Authentication | CE, FCC, RoHS, IEC 61850-3 (during authentication), IEEE 1613 (during authentication) | |||||||||
| Warranty | 5 years |
| Model | Gigabit Copper Port | Gigabit SFP Slot | Power Supply |
| MES5300-24GT4GS-2LV | 24 | 4 | 2 24/48VDC (18-72VDC)
dual power supply redundancy and non-polarity |
| MES5300-24GT4GS-2HV | 24 | 4 | 2 110/220VAC/DC (85-264VAC/77-300VDC)
dual power supply redundancy |
