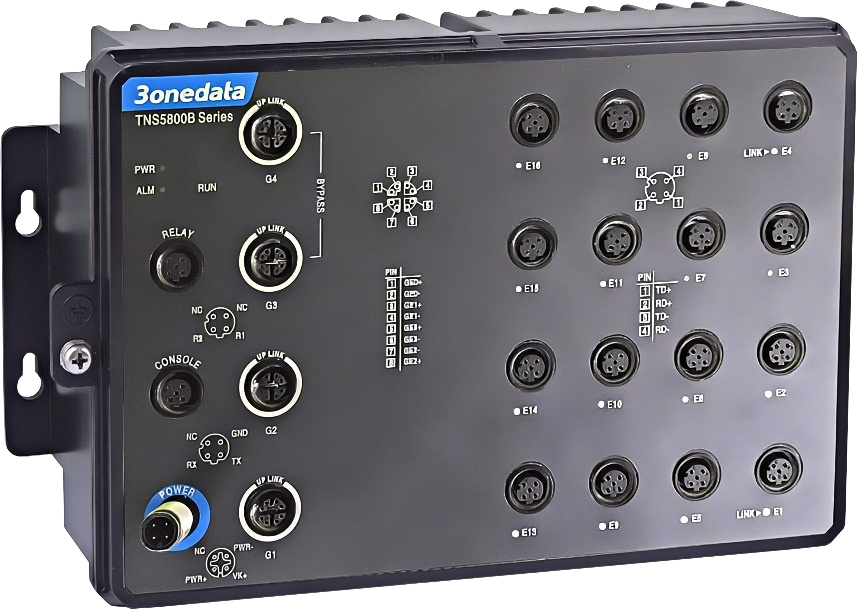

TNS5800B-16T4GT-P24 Wall Mounting 20-Port Layer 3 Public Transportation ITxPT Industrial Ethernet Switch
Complies with ITxPT
Support power ignition, support power delay-off
Support 16 100M M12 interfaces and 4 gigabit M12 interfaces (with 1 pair of Bypass function)
Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
Support 24VDC (12~31.2VDC) power supply input
Support IP67 protection grade
Support -40~75℃ wide operating temperature range
Introduction
TNS5800B-16T4GT-P24 products are layer 3 industrial Ethernet switches. This product has passed ITxPT certification and is suitable for operation in harsh environments, ensuring the reliability and efficiency of public transportation networks. Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. This product supports 24VDC power supply input and adopts wall mounting, which can meet the needs of different application sites.
The network management system supports various network protocols and industry standards, such as static routing, RIP, VRRP, NAT, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This device has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in Bus, Tram and other public transportation on-board systems, primarily used for electronic ticketing, passenger counting, passenger information, and video surveillance systems.
Features and Benefits
SNMPv1/v2c/v3 is used for network management of various levels
RMON can be used for efficient and flexible network monitoring
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server and DHCP client could be used for allocating IP address of different strategies
DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
File management is convenient for the device rapid configuration and online upgrading
Log information and log server can record user operation, system failure, system security and other information locally and remotely
User privilege classification configuration can set user privilege level
ACL can enhance the flexibility and security of the network, supporting bidirectional ACL IN and OUT.
SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security
Ring, MRP, STP/RSTP/MSTP can achieve network redundancy, preventing network storm
EPRS function can realize link backup and improve the reliability of network
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unicast
VLAN is used for simplifying network planning
Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
IGMP/MLD Snooping can be used for filtering multicast traffic to save the network bandwidth
IGMP/MLD can be used to manage and maintain multicast members
ARP could be used for MAC address resolution
VRRP, RIP/RIPng, ISIS, OSPF/OSPFv3 and BGP can realize dynamic routing configuration
PIM-DM and PIM-SM can be used to create and maintain multicast routing table entries and realize multicast routing forwarding
NAT maps private IP address to the legal IP address of external network, which can slow the consumption of IP address space
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
IPDT can track IP device status and realize interaction with other applications
QinQ can expand VLAN space and realize the transparent transmission of private network VLAN to public network.
Smart Link link backup, providing reliable and efficient backup and fast switching mechanism
Conduct network diagnosis and troubleshooting via Ping, Traceroute and cable diagnosis
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP ITU-T G.8032 for ERPS IEEE 802.3ad for LACP |
| Management | SNMP v1/v2c/v3 centralized managed equipment, RMON, Port Mirroring, LLDP, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, DNS, configuration file management, online upgrade, log information, Syslog server |
| Security | User permission classification, ACL, 802.1X authentication, DHCP Snooping, Radius server authentication, SSH/HTTPS protocol authorization, link oscillation protection, port loop detection, access control, SNMP, RMON, IPDT, IPv6DT, Smart-Link, NAT, Port alarm, temperature alarm, network load alarm |
| Switch Function | 802.1Q VLAN, MAC, QinQ, static aggregation, LACP, ARP, storm suppression |
| Unicast / Multicast | IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM |
| Redundancy Technology | Ring, MRP, STP/RSTP/MSTP, ERPS |
| Routing Technique | RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP |
| Troubleshooting | Ping, Traceroute, Network Cable Diagnosis |
| Time Management | NTP Client, RTC |
| Interface | Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotuning; it supports 1 pair of Bypass
100M M12: 10/100Base-T(X), M12(Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotuning Alarm interface: M12(Female), 4-Pin D-Coded, support 1 relay alarm output, with current load capacity of 1A@30VDC or 0.3A@125VAC Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded |
| Indicator | Power indicator, alarm indicator, running indicator, interface indicator |
| Switch Property | Transmission mode: store and forward
MAC address: 16K Cache: 12Mbit Backplane bandwidth: 128Gbps Switch time delay: <10μs |
| ITxPT | Ignition Wake-up: The switch does not start immediately upon powering on. It waits until the vehicle’s ignition is turned on with the key, and the switch receives the ignition signal before it activates.
Delayed Shutdown: After the vehicle’s ignition is turned off and the key is removed, the switch continues to operate for a period before powering off. Inventory Service: Provides foundational services compliant with the ITxPT standard. ITxPT xStatus: Provides status reports, fault information, and other details of Inventory Service devices through ITxPT records. |
| Power Supply | Voltage range: 24VDC (12~31.2VDC)
Connection method: M12(Male), 4-Pin A-Coded Connection protection: anti-reverse connection |
| Power Consumption | No-load at normal temperature: 10.12W@24VDC
Full-load at normal temperature: 12.25W@24VDC |
| Working Environment | Operating temperature: -40~75℃
Storage temperature: -40~85℃ Relative humidity: 5%~95% (no condensation) |
| Mechanical Structure | Housing: IP67 protection, metal
Installation: wall mounting Dimension (W x H x D): 230.1mm×80.5mm×159.97mm Weight: 2.558kg |
| Industrial Standard | IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge: ± 15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Relay: common mode ±4kV, differential mode ±2kV Ethernet interface: common mode±4kV Shock: IEC 61373 Free fall: IEC 60068-2-31 Vibration: IEC 61373 |
| Authentication | CE, FCC, RoHS, ITxPT |
| Warranty | 5 years |
| Model | 100M M12 | Gigabit M12
(With one pair of Bypass) |
Power Supply |
| TNS5800B-16T4GT-P24 | 16 | 4 | 12~31.2VDC power input |
