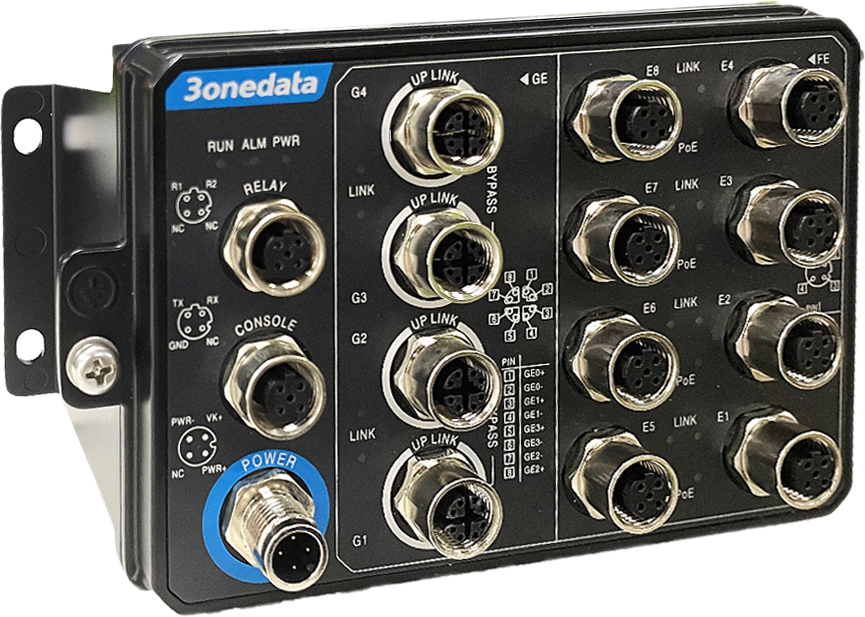

TNS5800B-8P4GT-P24 Wall Mounting 12-Port Layer 3 Public Transportation ITxPT Industrial Ethernet Switch
Complies with ITxPT
Support power ignition, support power delay-off
Support 8 100M PoE M12 interfaces and 4 Gigabit M12 interfaces (with 2 groups of Bypass function)
Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
Support 17~24VDC power supply inputs
Support IP67 protection grade
Support -40~75℃ wide operating temperature range
Introduction
TNS5800B-8P4GT-P24 is a layer 3 industrial Ethernet switch. This product has passed the ITxPT certification, which is suitable for running in harsh environment and can ensure the reliability and efficiency of public transportation network. Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. PoE power supply conforms to IEEE802.3af/at protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. This product supports 24VDC power supply input and adopts wall mounting, which can meet the needs of different application sites.
The network management system supports various network protocols and industry standards, such as static routing, RIP, VRRP, NAT, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. These devices have passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in Bus, Tram and other public transportation on-board systems, primarily used for electronic ticketing, passenger counting, passenger information, and video surveillance systems.
| Standard & Protocol | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+ ITU-T G.8032 for ERPS |
| Management | SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management (for PoE version) |
| Security | Classification of User Permissions, ACL, NAT, 802.1X Authentication, DHCP Snooping, Radius Server Authentication, Port Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Link Flapping Protection, Aggregation Protection |
| Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation, Storm Suppression |
| Unicast / Multicast | Static Multicast, Multicast Routing, Multicast Passthrough, IGMP-Snooping, IGMP, PIM-SM, PIM-DM, MVRP, MMRP |
| Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
| Troubleshooting | Ping, Traceroute, Port Loopback |
| Routing Technique | VRRP, RIP, OSPF, BGP, PBR |
| Time Management | NTP Client, RTC |
| Interface | Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning; it supports two groups of Bypass
100M PoE M12:10/100base-T (X), M12 (Female), 4-Pin D-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative Alarm port: M12 (Female), 4-Pin D-Coded, support 1 relay alarm output, current load capability is 1A@30VDC or 0.3A@125VAC Console port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Coded |
| Indicator | Power indicator, alarm indicator, running indicator, interface indicator, PoE indicator |
| Switch Property | Transmission mode: store and forward
MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 128Gbps Switch time delay: <10μs |
| ITxPT | Ignition wake-up: the switch will not be started when it is powered on; it will start when the car is ignited and receives the ignition signal.
Delayed shutdown: after the car is turned off, the switch will continue to work for a period of time before power is cut off. Inventory Service: providing ITxPT standard basic services. ITxPT xStatus: provide status report information and fault information of Inventory Service device through ITxPT records. |
| Power Supply | Power input: 24VDC(17~24VDC)
Connection method: M12(Male), 4-Pin A-Coded Connection protection: anti-reverse connection |
| Power Consumption | No-load (normal temperature): 15W@24VDC
Full-load (normal temperature): 60W@24VDC |
| Working Environment | Operating temperature: -40~75℃
Storage temperature:-40~85℃ Relative humidity: 5%~95%(no condensation) |
| Physical Characteristic | Housing: IP67 protection, metal
Installation: wall mounting Dimension (W x H x D): 178mm×104mm×92mm Weight: 1.57kg |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge:± 8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Ethernet interface: ±1kV Relay: ±2kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Relay: common mode ±2kV, differential mode±1kV Ethernet interface: common mode±2kV Shock: IEC 61373 Free fall: IEC 60068-2-31 Vibration: IEC 61373 |
| Authentication | CE, FCC, RoHS, ITxPT |
| Warranty | 5 years |
| Available Models | 100M PoE
M12 |
Gigabit M12 LAN Port
With Bypass |
Power Supply |
| TNS5800B-8P4GT -P24 | 8 | 4 | 17~24VDC power input |
